Description
General part information

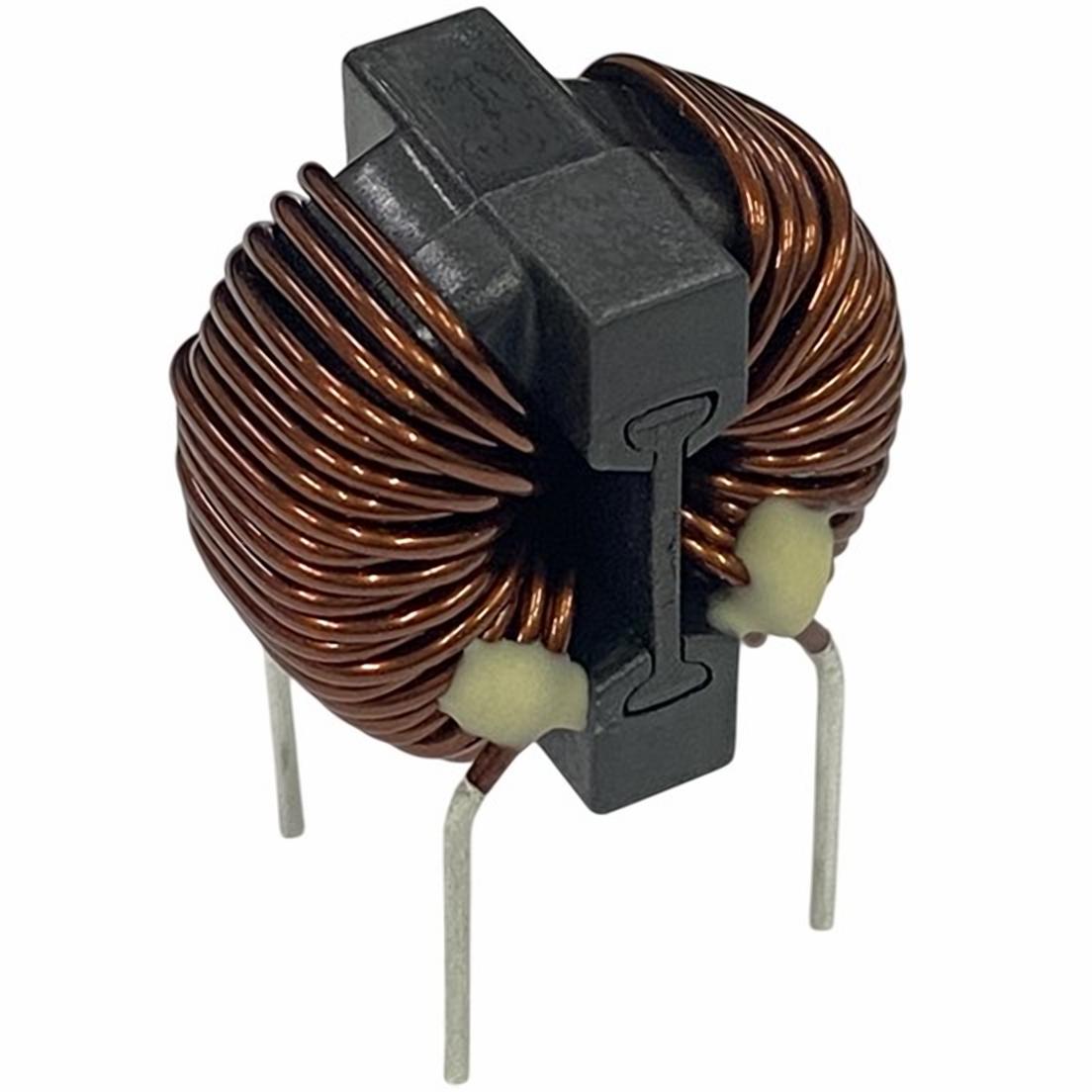

SCT17X-120-1R2A012V
IND COMMON MODE 0.19MH 12A
Technical Specifications
Parameters and characteristics for this part
| Specification | SCT17X-120-1R2A012V |
|---|---|
| Current Rating (Max) | 12 A |
| DC Resistance (DCR) (Max) | 7.74 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.846 in |
| Inductance | 190 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, No Base, Vertical |
| Package Leads | 4 Leads |
| Package Name | No Base, Vertical |
| Pin Count | 4 |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Width | 0.65 in |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
