B57891S0203F008
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 20KOHM 4300K DISC
B57891S0203F008
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 20KOHM 4300K DISC
Description
General part information
B57891S0203F008

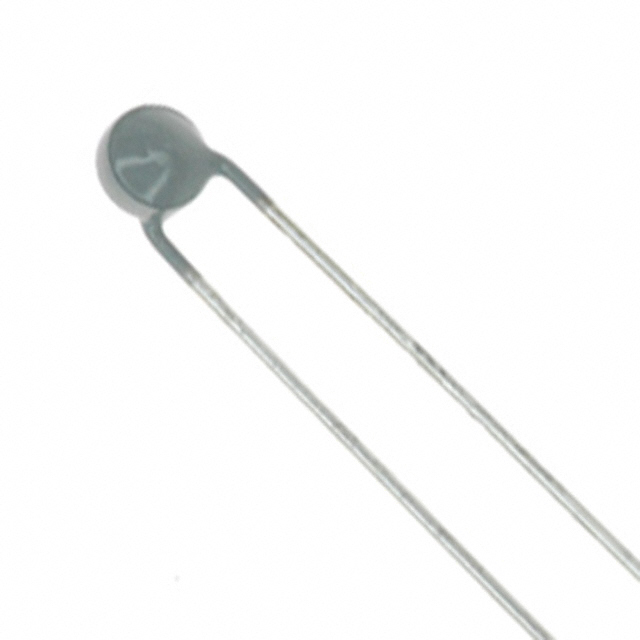

NTC Thermistor 20k Disc, 4.5mm Dia x 4.5mm W
Technical Specifications
Parameters and characteristics for this part
| Specification | B57891S0203F008 |
|---|---|
| B Value Tolerance | 1 % |
| Beta (B25/100) | 4300 K |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package Diameter | 4.5 mm |
| Package Name | Disc |
| Package Width | 4.5 mm |
| Power - Max | 200 mW |
| Resistance (Ohms) | 20 kOhm |
| Resistance Tolerance (%) | 1 % |
