1546556-5

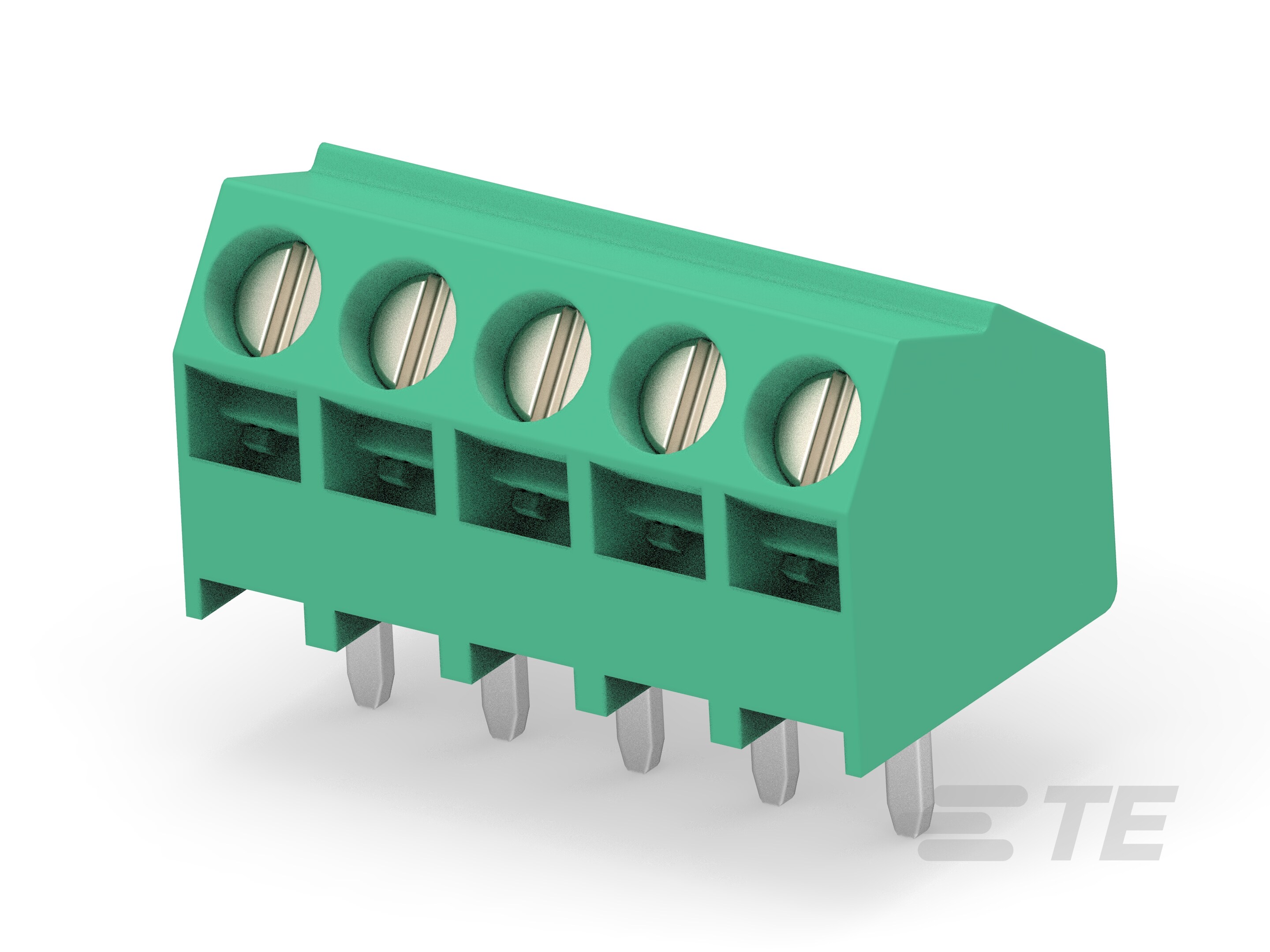

5 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 55° Wire Entry Angle, 28 – 16 AWG, .08 – 1.4 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1546556-5 |
|---|---|
| Color | Green |
| Current | 12 A |
| Mating Orientation (Angle) | 55 ° |
| Mating Orientation (Angle) (Alternate) | 125 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Screw |
