Description
General part information
MDT0350AIH-MULTI

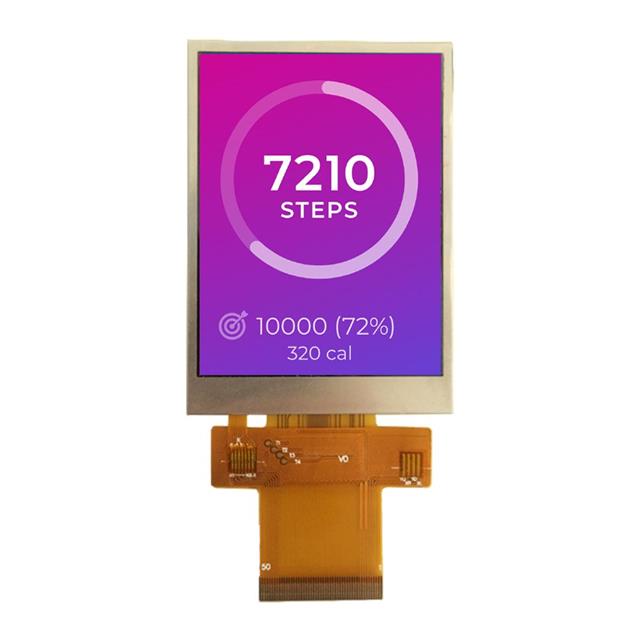

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 3.5" (88.90mm) 240 x 320
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0350AIH-MULTI |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | HX8347A |
| Diagonal Screen Size | 3.5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 320 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Multi |
| Touchscreen | Non-Touch |
| Viewing Area Height | 71.04 mm |
| Viewing Area Width | 53.28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
