1-102155-0

Active

TE Connectivity AMP Connectors

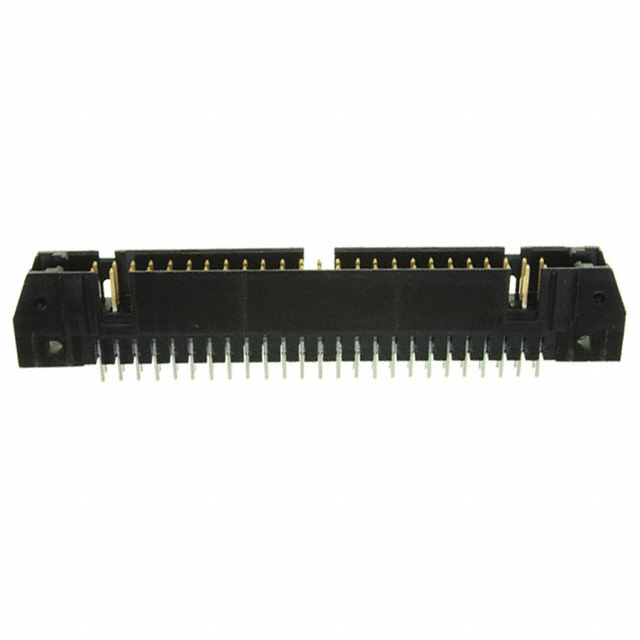

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

1-102155-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-102155-0	102155 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	3.94 mm
Contact Length - Post	0.155 "	0.155 "
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.549 in	0.549 in
Insulation Height	13.94 mm	13.94 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	50	10 - 64
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.684 in	0.684 in
Overall Contact Length	17.37 mm	17.37 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	390	$ 4.86

102155 Series

CONN HEADER VERT 64POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Voltage Rating	Current Rating (Amps)	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Shrouding	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Fastening Type	Mounting Type	Style
TE Connectivity AMP Connectors 1-102155-2	2.54 µm	100 µin	Square	UL94 V-0	0.1 in	2.54 mm	All	Black	3.94 mm	0.155 "	Gold or Gold-Palladium	15 µin	0.38 µm	2	0.684 in	17.37 mm	Tin-Lead	250 VAC	1 A	Header	2.54 mm	0.1 in	0.549 in	13.94 mm	-65 ░C	105 ░C	Solder	64	Shrouded - 4 Wall	6.1 mm	0.24 in	Male Pin	Push-Pull	Through Hole	Board to Cable/Wire
TE Connectivity AMP Connectors 1-102155-0	2.54 µm	100 µin	Square	UL94 V-0	0.1 in	2.54 mm	All	Black	3.94 mm	0.155 "	Gold or Gold-Palladium	15 µin	0.38 µm	2	0.684 in	17.37 mm	Tin-Lead	250 VAC	1 A	Header	2.54 mm	0.1 in	0.549 in	13.94 mm	-65 ░C	105 ░C	Solder	50	Shrouded - 4 Wall	6.1 mm	0.24 in	Male Pin	Push-Pull	Through Hole	Board to Cable/Wire
TE Connectivity AMP Connectors 102155-1	2.54 µm	100 µin	Square	UL94 V-0	0.1 in	2.54 mm	All	Black	3.94 mm	0.155 "	Gold or Gold-Palladium	15 µin	0.38 µm	2	0.684 in	17.37 mm	Tin-Lead	250 VAC	1 A	Header	2.54 mm	0.1 in	0.549 in	13.94 mm	-65 ░C	105 ░C	Solder	10	Shrouded - 4 Wall	6.1 mm	0.24 in	Male Pin	Push-Pull	Through Hole	Board to Cable/Wire

Description

General part information

102155 Series

Connector Header Through Hole 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
