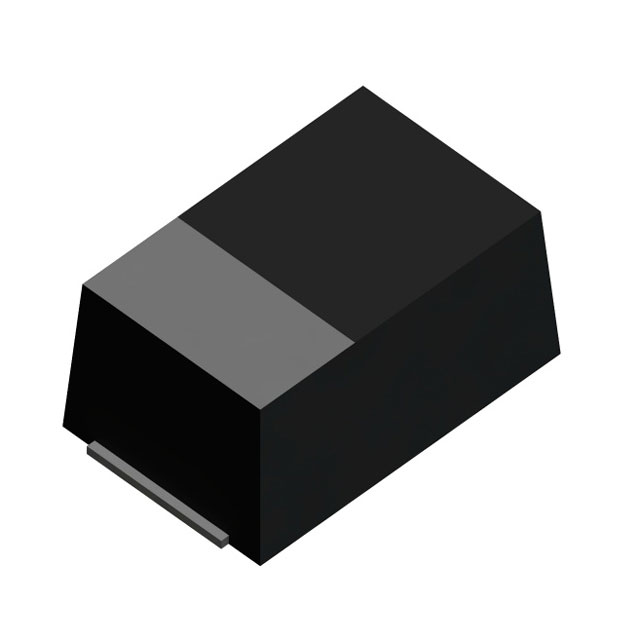

TCSM1C106M8R
ActiveKYOCERA AVX
CAP TANT 10UF 20% 16V 0603
TCSM1C106M8R
ActiveKYOCERA AVX
CAP TANT 10UF 20% 16V 0603
Description
General part information
TCSM1C106M8R
10 µF Molded Tantalum Capacitors 16 V 0603 (1608 Metric) 6Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TCSM1C106M8R |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 6 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.039 in |
| Manufacturer Size Code | M |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.033 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 16 V |
