Description
General part information

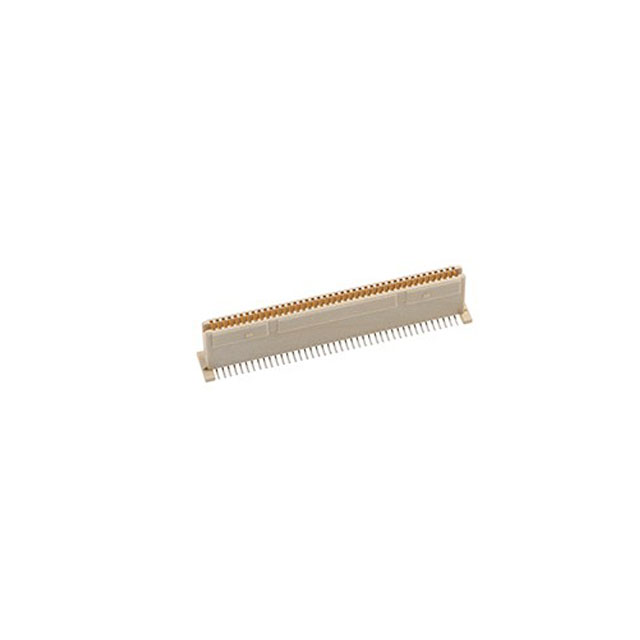

0717423001
CONN RCPT 84POS SMD GOLD
Technical Specifications
Parameters and characteristics for this part
| Specification | 0717423001 |
|---|---|
| Connector Type | Outer Shroud Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Height Above Board | 0.406 in |
| Mated Stacking Height Options | 15mm, 13mm |
| Mounting Type | Surface Mount |
| Number of Positions | 84 |
| Number of Rows | 2 |
| Pitch | 0.039 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
