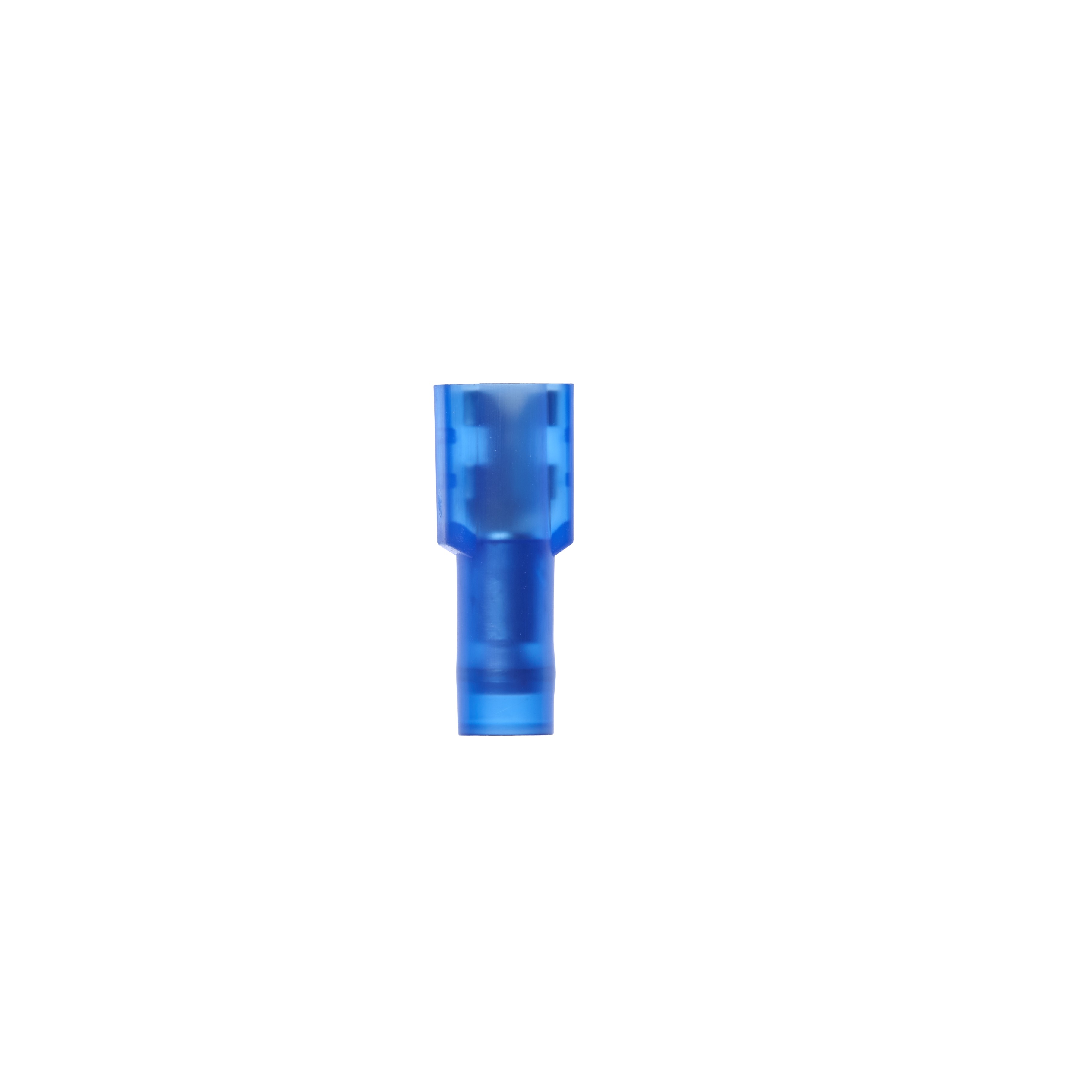

Specification	MNG14-187DFIK

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	0.145 in
Length - Overall	0.81 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 in
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

MNG14 Series

Part	Material - Insulation	Insulation Diameter	Contact Finish	Insulation	Width - Outer Edges	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Color	Terminal Type	Length - Overall	Contact Material	Thickness	Mounting Type	Length - Termination	Length - Ring Center to Termination	Tab Width	Tab Thickness	Gender	Number of Wire Entries
3M Electronic Specialty MNG14-8R/LK	Nylon PA Polyamide	0.17 in	Tin	Insulated	0.31 in	Crimp	16 AWG	14 AWG	8 Stud	Blue	Circular	0.94 in	Copper ETP	0.03 in	Free Hanging (In-Line)
3M Electronic Specialty MNG14-8FBX-BOTTLE	Nylon PA Polyamide	0.17 in	Tin	Insulated	0.3 in	Crimp	16 AWG	14 AWG	8 Stud	Blue	Standard	0.86 in	Copper ETP		Free Hanging (In-Line)	0.46 in	0.25 in
3M Electronic Specialty MNG14-250DMFX-A-BOTTLE		0.17 in		Non-Mating End Insulated		Crimp	16 AWG	14 AWG		Blue	Stacked	0.88 in			Free Hanging (In-Line)			0.25 in	0.032 in	Female Male
3M Electronic Specialty MNG14-10R/LX-BOTTLE	Nylon PA Polyamide	0.17 in	Tin	Insulated	0.31 in	Crimp	16 AWG	14 AWG	10 Stud	Blue	Circular	0.94 in	Copper ETP	0.03 in	Free Hanging (In-Line)
3M Electronic Specialty MNG14-6FBK	Nylon PA Polyamide	0.17 in	Tin	Insulated	0.3 in	Crimp	16 AWG	14 AWG	6 Stud	Blue	Standard	0.86 in	Copper ETP		Free Hanging (In-Line)	0.46 in	0.25 in
3M Electronic Specialty MNG14-10R/LK	Nylon PA Polyamide	0.17 in	Tin	Insulated	0.31 in	Crimp	16 AWG	14 AWG	10 Stud	Blue	Circular	0.94 in	Copper ETP	0.03 in	Free Hanging (In-Line)
3M Electronic Specialty MNG14-250DMX-BOTTLE		0.17 in	Tin	Non-Mating End Insulated		Crimp	16 AWG	14 AWG		Blue	Standard	0.94 in	Copper ETP		Free Hanging (In-Line)			0.25 in	0.032 in	Male
3M Electronic Specialty MNG14-110DFK-A		0.145 in		Non-Mating End Insulated		Crimp	16 AWG	14 AWG		Blue	Standard	0.77 in			Free Hanging (In-Line)			0.11 in	0.02 in	Female
3M Electronic Specialty MNG14BCK				Fully Insulated		Crimp	16 AWG	14 AWG		Blue	Butt Splice Individual Openings Inline										2
3M Electronic Specialty MNG14-10FLK	Nylon PA Polyamide	0.17 in	Tin	Insulated	0.32 in	Crimp	16 AWG	14 AWG	10 Stud	Blue	Snap Spring	0.89 in	Copper ETP		Free Hanging (In-Line)	0.46 in	0.25 in
