B82422T3680K008
ActiveEPCOS - TDK Electronics
SMT-INDUCTOR DE 0,068 UH 10%
B82422T3680K008
ActiveEPCOS - TDK Electronics
SMT-INDUCTOR DE 0,068 UH 10%
Description
General part information
B82422T3680K008

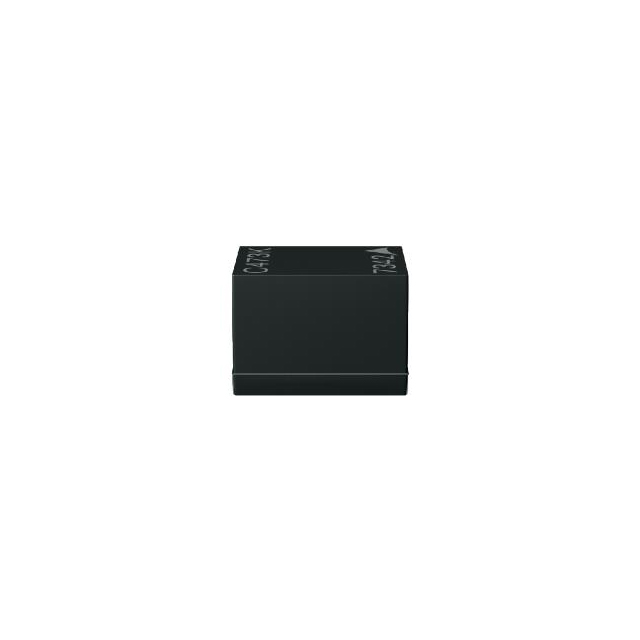

68 nH Unshielded Wirewound Inductor 450 mA 230mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82422T3680K008 |
|---|---|
| Current Rating | 0.45 A |
| DC Resistance (DCR) (Max) | 230 mOhm |
| Frequency - Self Resonant | 1 GHz |
| Height - Seated (Max) | 0.083 in |
| Inductance | 68 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Name | 1210 |
| Q | 27 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 10 % |
| Type | Wirewound |
