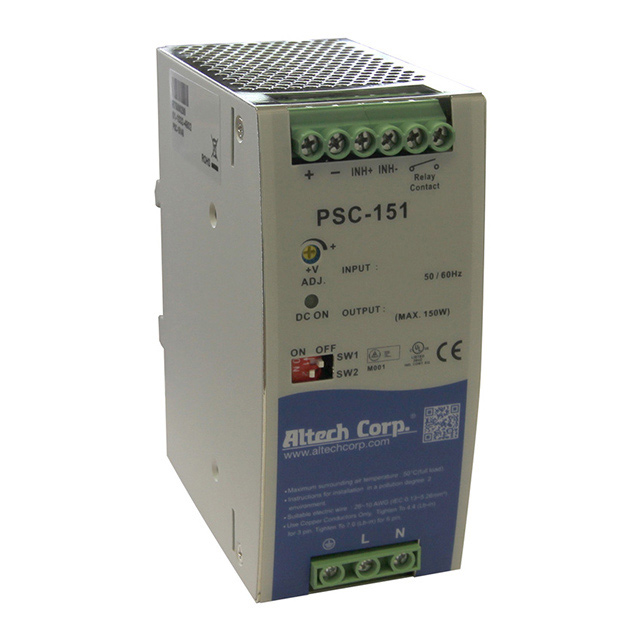

Specification	PSC-15124

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	88 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CE, TUV, cULus
Current - Output (Max)	6.3 A
DC Voltage - Input (Max)	373 V
DC Voltage - Input (Min)	124 V
Efficiency	87 %
Features	Universal Input, Remote On/Off, Adjustable Output, PFC
Input Type	AC or DC, DC, AC
Minimum Load Required	No
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	151 W
Size / Dimension Height	4.93 in
Size / Dimension Length	3.93 in
Size / Dimension Width	2.19 in
Standard Number	508, 60950-1
Voltage - Isolation	4242 V
Voltage - Output 1	24 V
