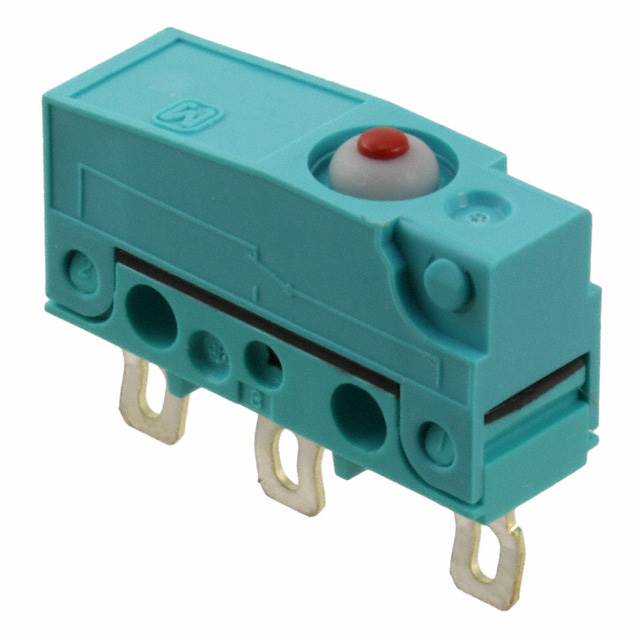

ABS1410419

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABS1410419

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABS1410419	ABS141 Series

Actuator Type	Round (Pin Plunger)	Round (Pin Plunger), Lever, Straight, Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	2 - 100 mA
Differential Travel	0.1 mm	0.1 - 1 mm
Differential Travel	0.004 in	0.004 - 0.04 in
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	100 gf	35 - 150 gf
Operating Position	8.4 mm	8.4 - 8.8 mm
Operating Position	0.33 in	0.33 - 0.345 in
Operating Position	-	0.571 in
Operating Position	-	14.5 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.4 mm	0.4 - 1.6 mm
Overtravel	0.015 "	0.015 - 0.062 "
Pretravel	0.024 in	0.024 - 0.138 in
Pretravel	0.6 mm	0.6 - 3.5 mm
Release Force	15 gf	2.5 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABS141 Series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Mounting Type	Voltage Rating - DC	Operating Position	Operating Position	Overtravel	Overtravel	Operating Force	Voltage Rating - AC	Actuator Type	Circuit	Pretravel	Pretravel	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Electrical Life	Mechanical Life	Differential Travel	Differential Travel	Ingress Protection	Current Rating (Amps)	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS1410513	Chassis Mount	30 V	8.4 mm	0.33 in	0.4 mm	0.015 "	150 gf	125 V	Round (Pin Plunger)	SPDT	0.024 in	0.6 mm	On-Mom	Solder Lug	85 °C	-40 °C	20 gf	200000 Cycles	5000000 Cycles	0.1 mm	0.004 in	IP50	100 mA
Panasonic Electric Works ABS1412403	Chassis Mount	30 V	8.8 mm	0.345 in	1.2 mm	0.047 "	35 gf	125 V	Lever, Straight	SPDT	0.11 in	2.8 mm	On-Mom	Solder Lug	85 °C	-40 °C	3.059 gf	50000 Cycles	5000000 Cycles	0.8 mm	0.031 "	IP50	2 A
Panasonic Electric Works ABS1410449	Chassis Mount	30 V	8.4 mm	0.33 in	0.4 mm	0.015 "	100 gf		Round (Pin Plunger)	SPDT	0.024 in	0.6 mm	On-Mom	Solder Lug	85 °C	-40 °C	15 gf	200000 Cycles	5000000 Cycles	0.1 mm	0.004 in	IP50	100 mA
Panasonic Electric Works ABS1410409	Chassis Mount	30 V	8.4 mm	0.33 in	0.4 mm	0.015 "	100 gf	125 V	Round (Pin Plunger)	SPDT	0.024 in	0.6 mm	On-Mom	Solder Lug	85 °C	-40 °C	15 gf	50000 Cycles	5000000 Cycles	0.1 mm	0.004 in	IP50	2 A
Panasonic Electric Works ABS1411519	Chassis Mount	30 V	8.8 mm	0.345 in	0.81 mm	0.032 in	60 gf	125 V	Lever, Straight	SPDT	0.1 in	2.5 mm	On-Mom	Solder Lug	85 °C	-40 °C	4.079 gf	200000 Cycles	5000000 Cycles	0.5 mm	0.02 in	IP50	100 mA
Panasonic Electric Works ABS1416419	Chassis Mount	30 V			0.81 mm	0.032 in	40 gf	125 V	Lever, Roller	SPDT	0.1 in	2.5 mm	On-Mom	Solder Lug	85 °C	-40 °C	3.5 gf	200000 Cycles	5000000 Cycles	0.5 mm	0.02 in	IP50	100 mA	0.571 in	14.5 mm
Panasonic Electric Works ABS1413409	Chassis Mount	30 V	8.8 mm	0.345 in	1.6 mm	0.062 in		125 V	Lever, Straight	SPDT	0.138 in	3.5 mm	On-Mom	Solder Lug	85 °C	-40 °C	2.5 gf	50000 Cycles	5000000 Cycles	1 mm	0.04 in	IP50	2 A
Panasonic Electric Works ABS1412509	Chassis Mount	30 V	8.8 mm	0.345 in	1.2 mm	0.047 "	55 gf	125 V	Lever, Straight	SPDT	0.11 in	2.8 mm	On-Mom	Solder Lug	85 °C	-40 °C	3.5 gf	50000 Cycles	5000000 Cycles	0.8 mm	0.031 "	IP50	2 A
Panasonic Electric Works ABS1416449	Chassis Mount	30 V			0.81 mm	0.032 in	40 gf		Lever, Roller	SPDT	0.1 in	2.5 mm	On-Mom	Solder Lug	85 °C	-40 °C	3.5 gf	200000 Cycles	5000000 Cycles	0.5 mm	0.02 in	IP50	100 mA	0.571 in	14.5 mm
Panasonic Electric Works ABS1410503	Chassis Mount	30 V	8.4 mm	0.33 in	0.4 mm	0.015 "	150 gf	125 V	Round (Pin Plunger)	SPDT	0.024 in	0.6 mm	On-Mom	Solder Lug	85 °C	-40 °C	20 gf	50000 Cycles	5000000 Cycles	0.1 mm	0.004 in	IP50	2 A
