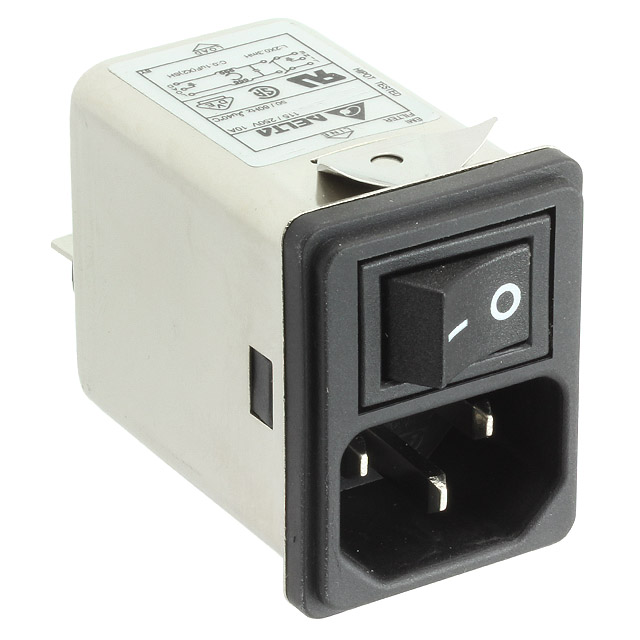

10BENG3GM

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 11.97

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10BENG3GM	10BENG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.25 mm	28.25 mm
Panel Cutout Dimensions [y]	39.7 mm	39.7 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Mounting Type	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type	Switch Features	Termination	Connector Style	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accomodates a Fuse
Delta Electronics 10BENG3GM	10 A	Panel Mount, Snap-In	Receptacle, Male Blades - Module	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial, Medical	Switch On-Off	Quick Connect	IEC 320-C14	CSA, UL, VDE	39.7 mm	28.25 mm
Delta Electronics 10BENG3G	10 A	Panel Mount, Snap-In	Receptacle, Male Blades - Module	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial	Switch On-Off	Quick Connect	IEC 320-C14	CSA, UL, VDE	39.7 mm	28.25 mm
