881607-2
ActiveTE Connectivity AMP Connectors

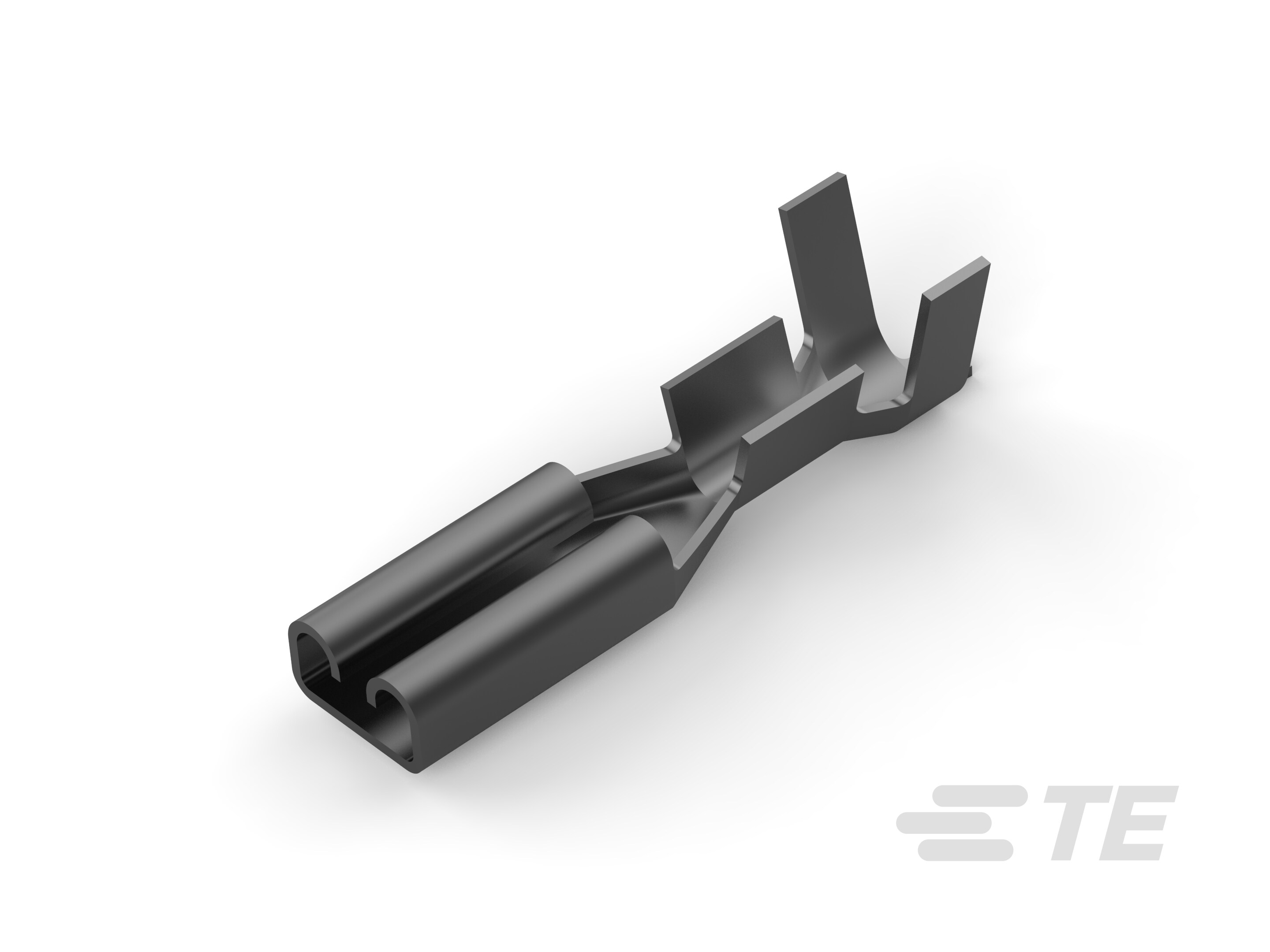

110 FASTON REC 20-17 AWG TPBR
881607-2
ActiveTE Connectivity AMP Connectors
110 FASTON REC 20-17 AWG TPBR
Description
General part information
FASTON 110 Series
Quick Disconnect Receptacle, 20 – 17 AWG, .51 – 1.03 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Tin Plating, Reel, F-Crimp, FASTON 110
Technical Specifications
Parameters and characteristics for this part
| Specification | 881607-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.106 in |
| Insulation Diameter (Min) | 0.079 in |
| Length - Overall | 0.574 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.248 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.11 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 17 AWG |
