CC45SL3JD270JYNN
ObsoleteTDK Corporation

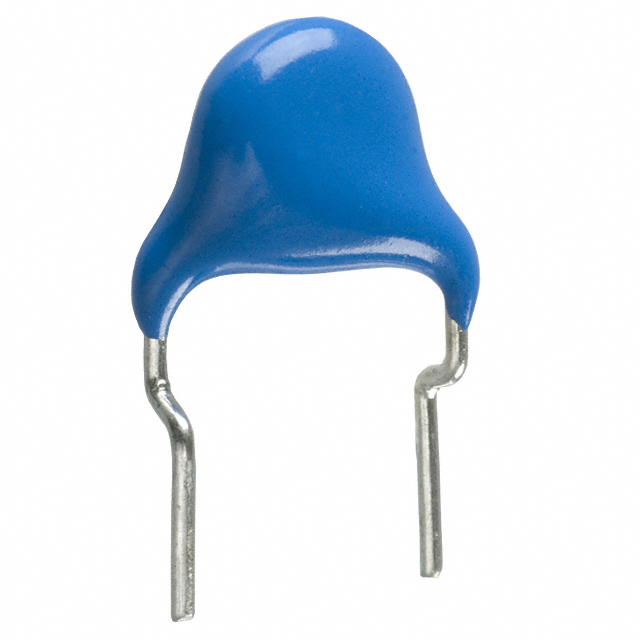

CAP CER 27PF 6KV SL RADIAL
CC45SL3JD270JYNN
ObsoleteTDK Corporation
CAP CER 27PF 6KV SL RADIAL
Description
General part information
CC45SL3JD270JYNN
27 pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CC45SL3JD270JYNN |
|---|---|
| Applications | General Purpose |
| Capacitance | 27 pF |
| Features | Low Dissipation Factor, High Voltage |
| Height - Seated (Max) | 0.453 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.295 in |
| Temperature Coefficient | SL |
| Tolerance | 5 % |
| Voltage - Rated | 6000 V |
