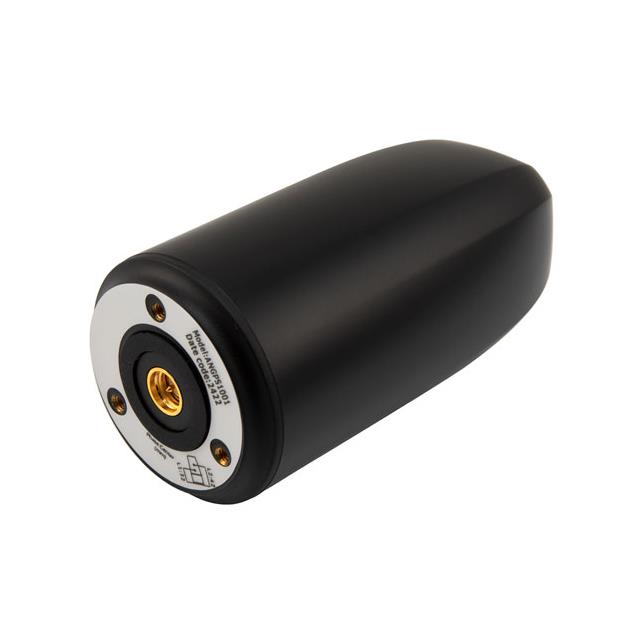

LCANGPS1001
1.388GHz BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Module RF Antenna 1.166GHz ~ 1.61GHz 37.5dBi SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LCANGPS1001 |
|---|---|
| Antenna Type | Module |
| Applications | GLONASS, SBAS, QZSS, GNSS, GPS, BEIDOU, Galileo, IRNSS |
| Features | 7.62m, Cable, 305mm, 3.048m, 1.524m, LNA |
| Frequency (Center/Band) | 1.388 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.61 GHz |
| Frequency Range (Min) | 1.166 GHz |
| Gain | 37.5 dBi |
| Height (Max) | 3.3 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 2 |
