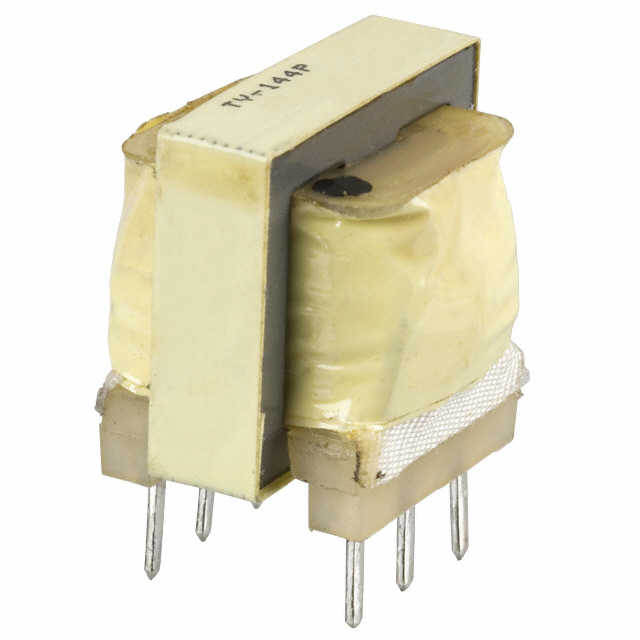

TY-144P-B
ActiveTriad Magnetics
AUDIO XFMR 15KCT / 15KCT TH
TY-144P-B
ActiveTriad Magnetics
AUDIO XFMR 15KCT / 15KCT TH
Description
General part information
TY-144P-B
15kCT Impedance Primary Ohms 15kCT Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 15kHz Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TY-144P-B |
|---|---|
| DC Resistance (DCR) - Primary | 1.18 kOhm |
| DC Resistance (DCR) - Secondary | 1.6 kOhm |
| Frequency Range (Max) | 15 kHz |
| Frequency Range (Min) | 200 Hz |
| Frequency Response Tolerance | 2 dB |
| Height - Seated (Max) | 0.74 in |
| Impedance - Primary (Ohms) | 15 kOhm |
| Impedance - Primary (Ohms) Code | CT |
| Impedance - Secondary (Ohms) | 15 kOhm |
| Impedance - Secondary (Ohms) Qualifier | CT |
| Insertion Loss | 1.5 dB |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Return Loss | 26 dB |
| Size / Dimension Length | 0.812 in |
| Size / Dimension Width | 0.7 in |
| Termination Style | PC Pin |
| Transformer Type | Voice Coupling, Data |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
| Voltage - Isolation | 1500 Vrns |
