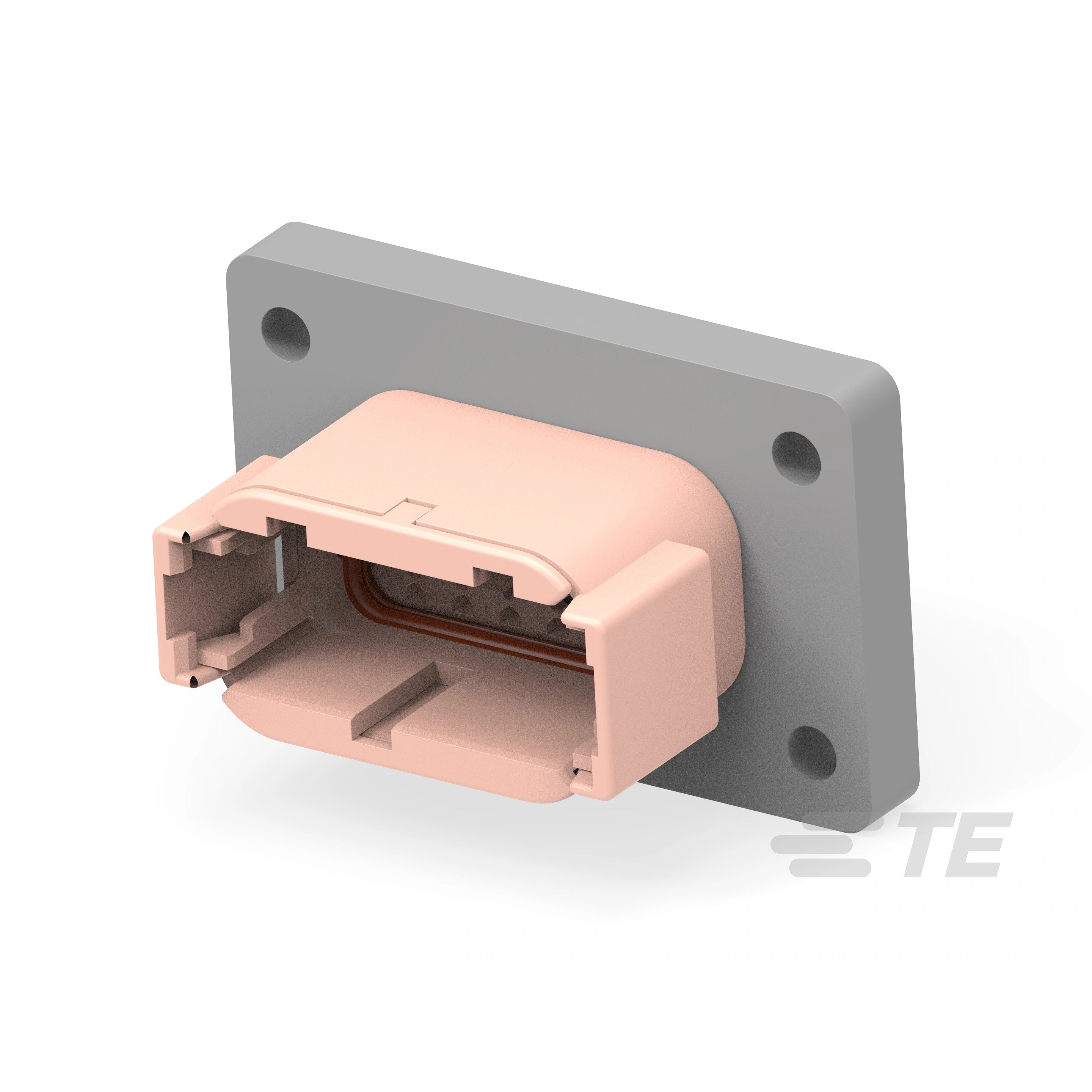

DTM04-12PD-L012
UnknownTE Connectivity AMP Connectors
REC, 12P, BRN, N, FLANGE, D
DTM04-12PD-L012
UnknownTE Connectivity AMP Connectors
REC, 12P, BRN, N, FLANGE, D
Description
General part information
DTM04-12PD-L012
12 Position Housing, Housing for Male Terminals, Wire-to-Panel, 3.81 mm [.15 in] Centerline, Sealable, Brown, Wire & Cable, Power, Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM04-12PD-L012 |
|---|---|
| Color | Brown |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | IP6K9K, IP68 |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.15 in |
| Row Spacing | 0.28 in |
