Specification	2-1462051-0

Coil Current	31 mA
Coil Type	Dual Coil, Latching
Coil Voltage	4.5 VDC
Contact Form	C, 1, SPDT, Form
Contact Rating (Current)	2 A
Mounting Type	Surface Mount
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.6 VAC
Operate Time	5 ms
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Release Time	5 ms
Switching Voltage AC (Max)	250 VAC
Switching Voltage DC (Max)	220 VDC
Termination Style	Gull Wing

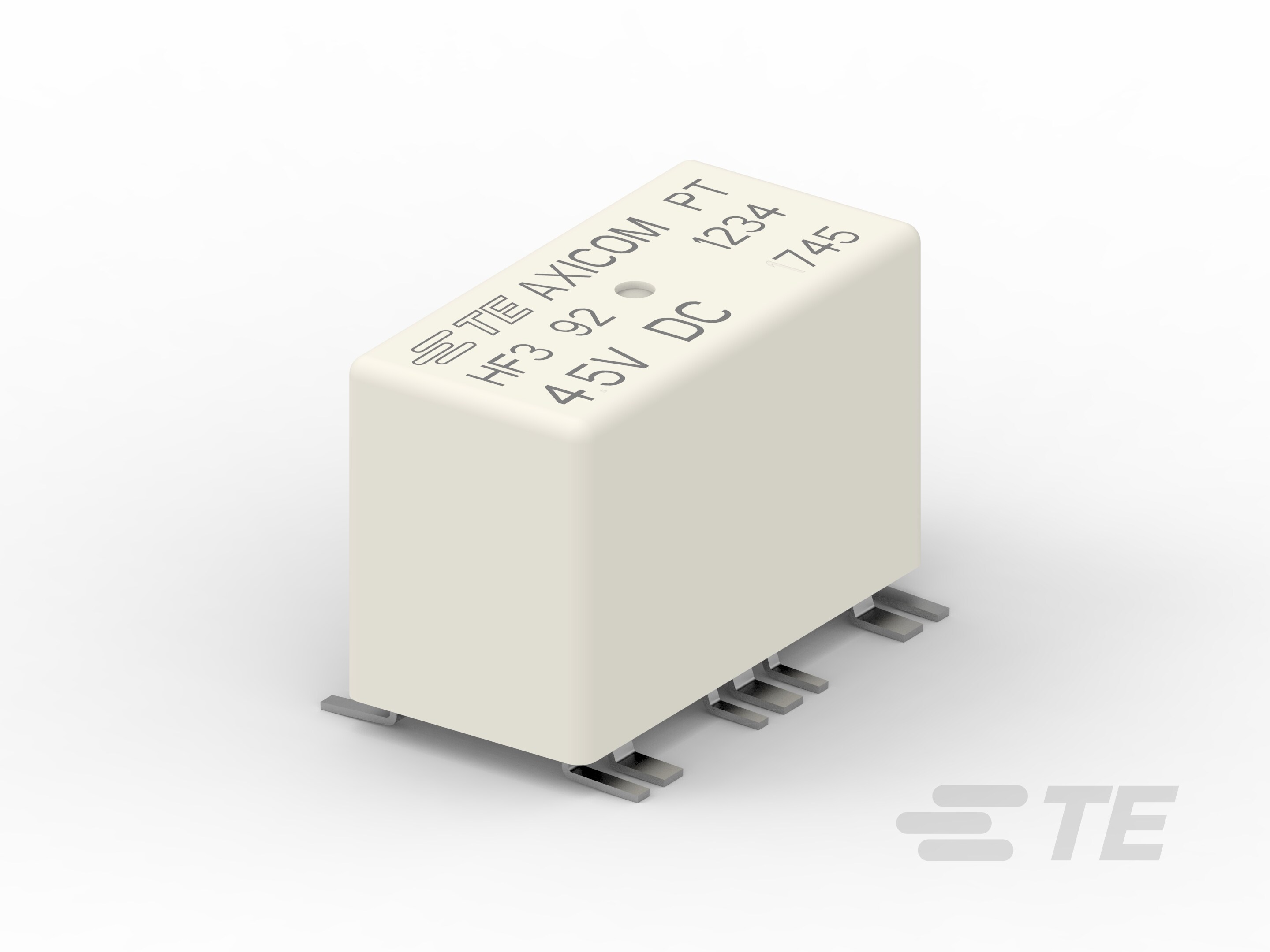

Axicom HF3 Series

Part	Coil Voltage	Termination Style	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Contact Form	Coil Type	Mounting Type	Coil Current	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Must Release Voltage	Operate Time	Release Time	Coil Power	Coil Resistance	Contact Material
TE Connectivity AMP Connectors 1-1462051-7
TE Connectivity AMP Connectors 2-1462051-3	5 V	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Non Latching	Surface Mount	28 mA	2 A	-55 °C	85 °C	3.75 VDC	0.5 VDC	5 ms	5 ms	140 mW	178 Ohms	Gold (Au) Silver (Ag)
TE Connectivity AMP Connectors 1462051-2	5 V	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Non Latching	Surface Mount	28 mA	2 A	-55 °C	85 °C	3.75 VDC	0.5 VDC	5 ms	4 ms
TE Connectivity AMP Connectors 2-1462051-5	4.5 VDC	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Dual Coil Latching	Surface Mount	31 mA	2 A	-55 °C	85 °C	3.38 VDC		5 ms	5 ms
TE Connectivity AMP Connectors 1-1462050-6
TE Connectivity AMP Connectors 1462050-9	12 VAC	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Latching Single Coil	Surface Mount	5.8 mA	2 A	-55 °C	85 °C	9 VDC		5 ms	5 ms
TE Connectivity AMP Connectors 3-1462051-1	12 VAC	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Non Latching	Surface Mount	11.7 mA	2 A	-55 °C	85 °C	9 VDC	1.2 V	5 ms	5 ms
TE Connectivity AMP Connectors 1-1462051-2
TE Connectivity AMP Connectors 1-1462051-7	6 VAC	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Non Latching	Surface Mount	23.3 mA	2 A	-55 °C	85 °C	4.5 VDC	0.6 VAC	5 ms	5 ms	140 mW	257 Ohms	Gold (Au) Silver (Ag)
TE Connectivity AMP Connectors 1-1462051-5	24 VDC	Gull Wing	220 VDC	250 VAC	1 C Form SPDT	Dual Coil Latching	Surface Mount	5.8 mA	2 A	-55 °C	85 °C	18 VDC		5 ms	5 ms
