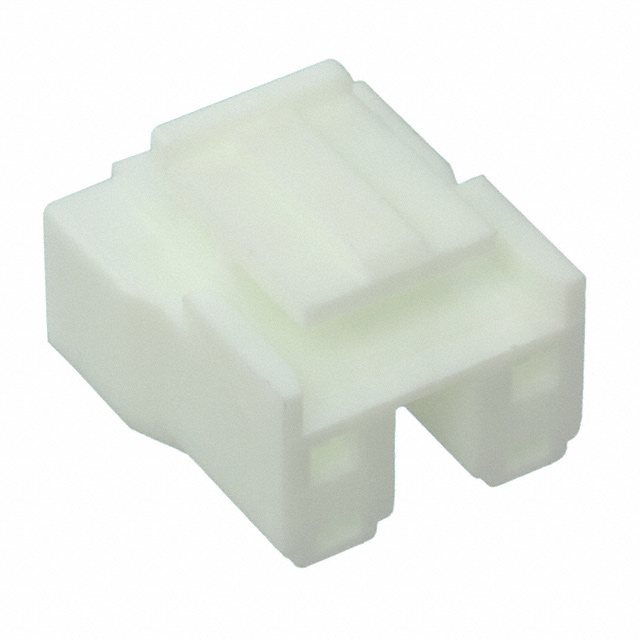

VAR-2

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 7.92MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 7.92MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Natural 0.312" (7.92mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VAR-2	- Series

Color	Natural	Natural, Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Insulation Material	Polyamide (PA6), Nylon 6	Polybutylene Terephthalate (PBT), Polyamide (PA6), Nylon 6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 10
Number of Rows	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	7.92 mm	2.54 - 7.92 mm
Pitch [x]	0.312 in	0.1 - 0.312 in
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm

CONN RCPT HSG 5POS 2.54MM

Part	Pitch [x]	Pitch [x]	Note	Mounting Type	Insulation Material	Connector Type	Contact Termination	Number of Rows	Contact Type	Color	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing [x]	Row Spacing
JST Sales America Inc. RE-05	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	1	Female Socket
JST Sales America Inc. VAR-2	7.92 mm	0.312 in	Contacts Not Included	Free Hanging (In-Line)	Polyamide (PA6), Nylon 6	Receptacle	Crimp	1	Female Socket	Natural	2	Latch Holder	-25 °C	85 °C
JST Sales America Inc. RE-04	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	1	Female Socket		4
JST Sales America Inc. RF-10	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	Female Socket	Black	10				0.1 in	2.54 mm
JST Sales America Inc. RF-08	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	Female Socket	Black	8				0.1 in	2.54 mm
JST Sales America Inc. RF-06	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	2	Female Socket	Black	6				0.1 in	2.54 mm
JST Sales America Inc. RE-02	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Receptacle	Crimp	1	Female Socket		2
