Description
General part information

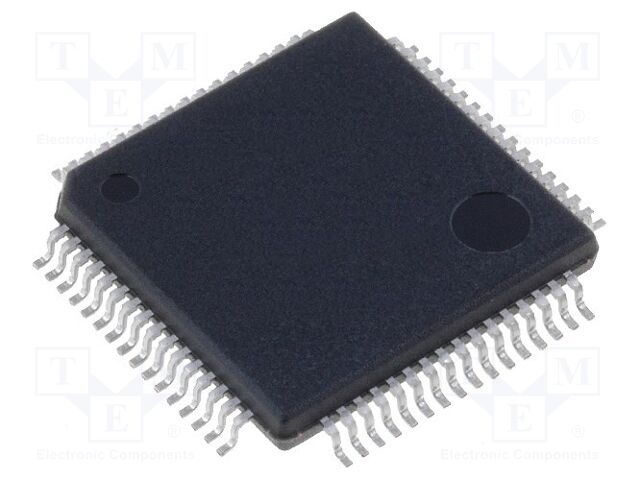

XMC4104F64K128ABXQSA1
IC: ARM MICROCONTROLLER; PG-LQFP-64; 20KBSRAM,128KBFLASH; 3.3VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | XMC4104F64K128ABXQSA1 |
|---|---|
| A/D Channels | 10 count |
| A/D Resolution (bits) | 12 bit |
| Connectivity | SPI, LINbus, I2C, USART, UART, USB, CANbus |
| Core Processor | ARM® Cortex®-M4 |
| Core Size (Bit Width) | 32 Bit |
| D/A Channels | 2 count |
| D/A Resolution (bits) | 12 bit |
| Mounting Type | Surface Mount |
| Number of I/O | 35 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP Exposed Pad |
| Package Name | PG-LQFP-64-19 |
| Peripherals | I2S, DMA, LED, WDT, PWM, POR |
| Program Memory Depth (128KB) | 128 K |
| Program Memory Size | 128KB |
| Program Memory Type | FLASH |
| Program Memory Width (128KB) | 8 |
| RAM Size Depth | 20 K |
| RAM Size Width | 8 bit |
| Speed | 80 MHz |
| Voltage - Supply (Vcc/Vdd) Maximum | 3.63 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 3.13 V |
