FFLI6B1607K--
ActiveKYOCERA AVX
CAP FILM 1600UF 10% 800VDC RAD
FFLI6B1607K--
ActiveKYOCERA AVX
CAP FILM 1600UF 10% 800VDC RAD
Description
General part information
FFLI6B1607K--

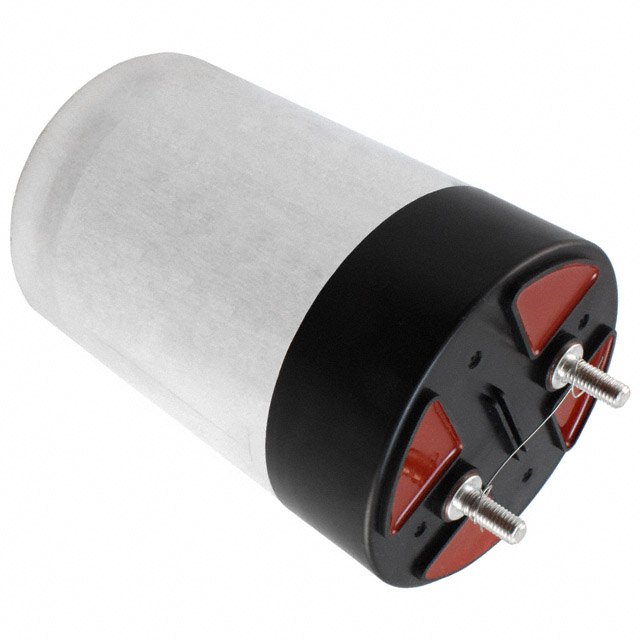

1600 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FFLI6B1607K-- |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 1600 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 7.165 in |
| Lead Spacing | 1.969 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 4.567 in |
| Termination | Threaded, Male |
| Tolerance | 10 % |
| Voltage Rating - DC | 800 V |
