PKT-MEZDPD4506A-84DB
ActiveMonolithic Power Systems Inc.

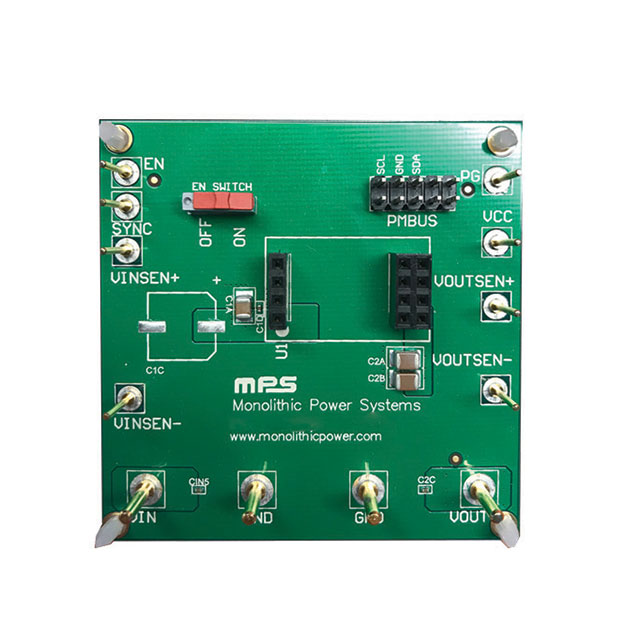

CONFIGURABLE 4506A 5V 6A EVB
PKT-MEZDPD4506A-84DB
ActiveMonolithic Power Systems Inc.
CONFIGURABLE 4506A 5V 6A EVB
Description
General part information
PKT-MEZDPD4506A-84DB
mEZDPD4506A-84DB MEZDPD4506 DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | PKT-MEZDPD4506A-84DB |
|---|---|
| Board Type | Fully Populated |
| Contents | Accessories, Board, Cable |
| Current - Output | 6 A |
| Frequency - Switching | 800 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Cable(s), Accessories, Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | mEZDPD4506A-84DB |
| Voltage - Input (Maximum) | 28 V |
| Voltage - Input (Minimum) | 20 V |
| Voltage - Output | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
