BPJJ01
ObsoleteSWITCHCRAFT/CONXALL
ADAPT RCA JACK TO RCA JACK
BPJJ01
ObsoleteSWITCHCRAFT/CONXALL
ADAPT RCA JACK TO RCA JACK
Description
General part information
BPJJ01

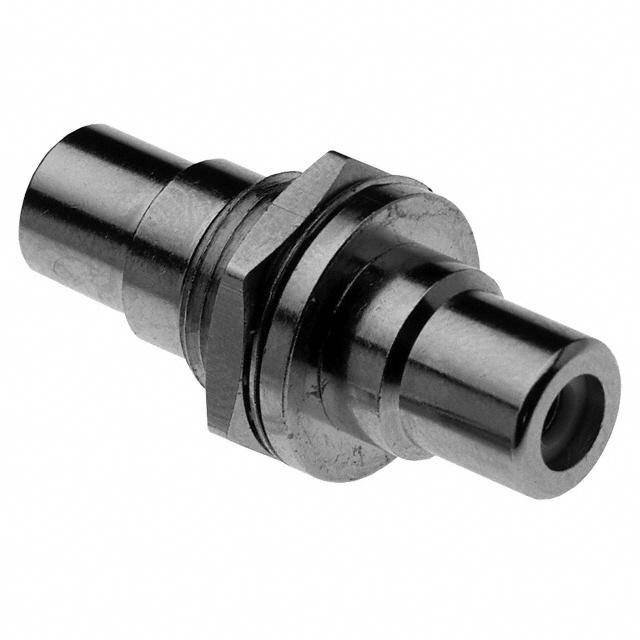

Adapter Connector Phono (RCA) Jack To Phono (RCA) Jack Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BPJJ01 |
|---|---|
| Actual Diameter (ID) | 0.126 in |
| Actual Diameter (OD) | 0.327 in |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Material - Plating | Nickel |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Phono (RCA) Jack |
| Convert To (Adapter End) | Phono (RCA) Jack |
| Features | Mounting Hardware |
| Gender | Female to Female |
| Includes | Washer, Connector, Nut |
| Includes Total Count | 3 pcs |
| Insulation Color | Black |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Conductors | 2 Conductors |
| Shielding | Unshielded |
