SPMWHT325AD7YBV0S0
ObsoleteSamsung Semiconductor, Inc.
LED LM362A WARM WHT 3000K 3623
SPMWHT325AD7YBV0S0
ObsoleteSamsung Semiconductor, Inc.
LED LM362A WARM WHT 3000K 3623
Description
General part information
SPMWHT325AD7YBV0S0

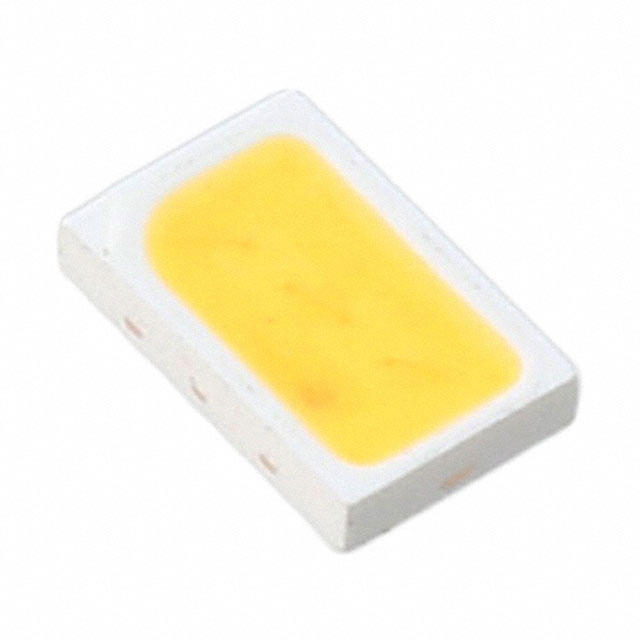

LED Lighting LM362A White, Warm 3000K 5.96V 100mA 120° 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SPMWHT325AD7YBV0S0 |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 90 |
| Current - Max | 200 mA |
| Current - Test | 100 mA |
| Flux (Maximum) | 65 lm |
| Flux (Minimum) | 50 lm |
| Flux (Nominal) | 58 lm |
| Height - Seated (Max) | 0.028 in |
| Lumens/Watt | 97 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Package Name | 3623 |
| Size / Dimension Length | 0.142 in |
| Size / Dimension Width | 0.091 in |
| Thermal Resistance of Package | 15 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 5.96 V |
