BEA01SBT0

Active

BULGIN LIMITED

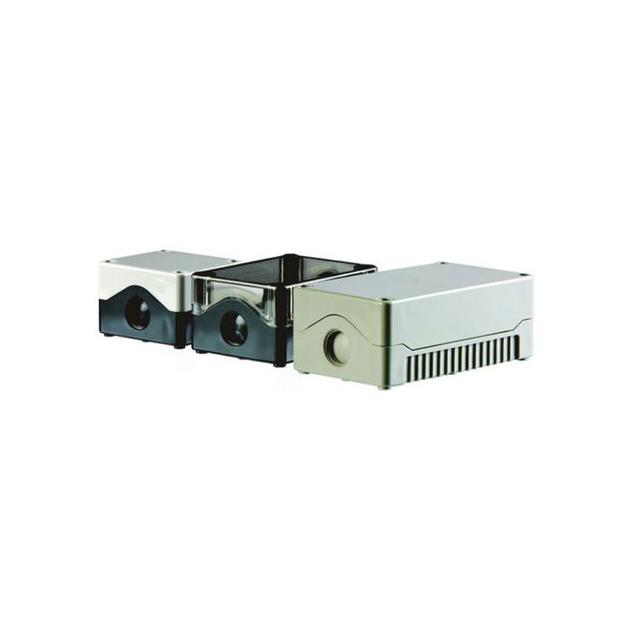

BLACK ACRYLONITRILE BUTADIENE STYRENE PC BOARDS MOUNT BE ENCLOSURE

Search across all available documentation for this part.

Active

BULGIN LIMITED

BLACK ACRYLONITRILE BUTADIENE STYRENE PC BOARDS MOUNT BE ENCLOSURE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BEA01SBT0	BEA01SB Series

Area (L x W)	58.4 cm˛	58.4 cm˛
Area (L x W)	9.05 in˛	9.05 in˛
Color	Transparent Cover/Door, Black	Black, Transparent Cover/Door
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Knockouts, PCB Supports	Knockouts, PCB Supports
Height [z]	2.087 in	2.087 in
Height [z]	53 mm	53 mm
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP67	IP67
Size / Dimension [x]	80.2 mm	80.2 mm
Size / Dimension [x]	3.157 in	3.157 in
Size / Dimension [y]	72.8 mm	72.8 mm
Size / Dimension [y]	2.866 in	2.866 in

BOX ABS BLACK 3.16"L X 2.87"W

Part	Area (L x W)	Area (L x W)	Color	Ratings	Features	Container Type	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Material	Design
BULGIN LIMITED BEA01SBB0	58.4 cm˛	9.05 in˛	Black	IP67	Knockouts, PCB Supports	Box	UL94 HB	80.2 mm	72.8 mm	2.866 in	3.157 in	2.087 in	53 mm	Plastic, ABS	Cover Included
BULGIN LIMITED BEA01SBT0	58.4 cm˛	9.05 in˛	Black, Transparent Cover/Door	IP67	Knockouts, PCB Supports	Box	UL94 HB	80.2 mm	72.8 mm	2.866 in	3.157 in	2.087 in	53 mm	Plastic, ABS	Cover Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 20.17
Newark	Each	1	$ 31.27

General part information

Box Plastic, ABS Black, Transparent Cover/Door Cover Included 3.157" L x 2.866" W (80.20mm x 72.80mm) X 2.087" (53.00mm)

Technical documentation and resources
