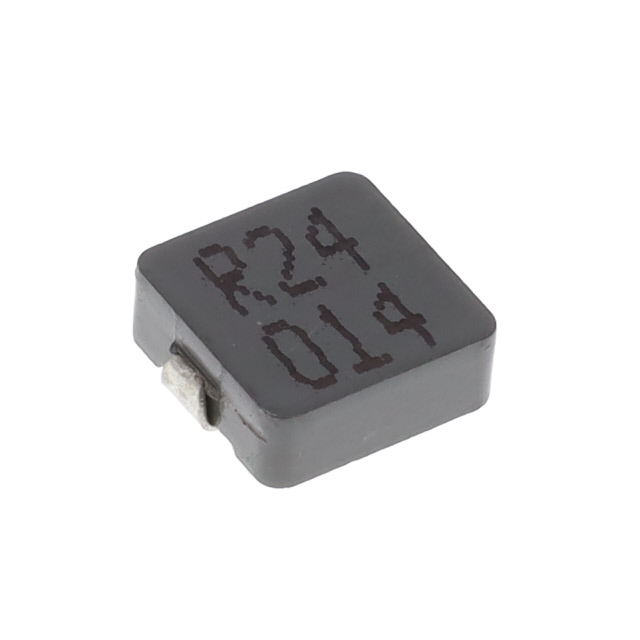

104CDMCDDS-R24MC
ActiveSumida America Components Inc.
FIXED IND 240NH 43A 1.15MOHM SMD
104CDMCDDS-R24MC
ActiveSumida America Components Inc.
FIXED IND 240NH 43A 1.15MOHM SMD
Description
General part information
104CDMCDDS-R24MC
240 nH Shielded Molded Inductor 43 A 1.15mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 104CDMCDDS-R24MC |
|---|---|
| Current - Saturation (Isat) | 70.4 A |
| Current Rating | 43 A |
| DC Resistance (DCR) (Max) | 1.15 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 240 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.453 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 20 % |
| Type | Molded |
