2949240

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

EMG12-REL/KSR-24/2

Part	Release Time	Operate Time	Coil Current	Mounting Type	Coil Resistance	Contact Rating (Current)	Contact Material	Coil Type	Load - Max Switching	Relay Type	Contact Form	Termination Style	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Switching Voltage	Features
Phoenix Contact 2949208	11 ms	7 ms	100 mA	DIN Rail	240 Ohms	6 A	Silver Nickel (AgNi)	Non Latching	140 W, 1500 VA	General Purpose	SPST-NC (1 Form B)	Screw Terminal	24 VAC	-20 C	40 °C	EAC	250 VAC, 250 VDC
Phoenix Contact 2949240				DIN Rail			Silver Nickel (AgNi)			General Purpose	SPST-NO (1 Form A)	Screw Terminal	24 VAC					Socket Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.05

General part information

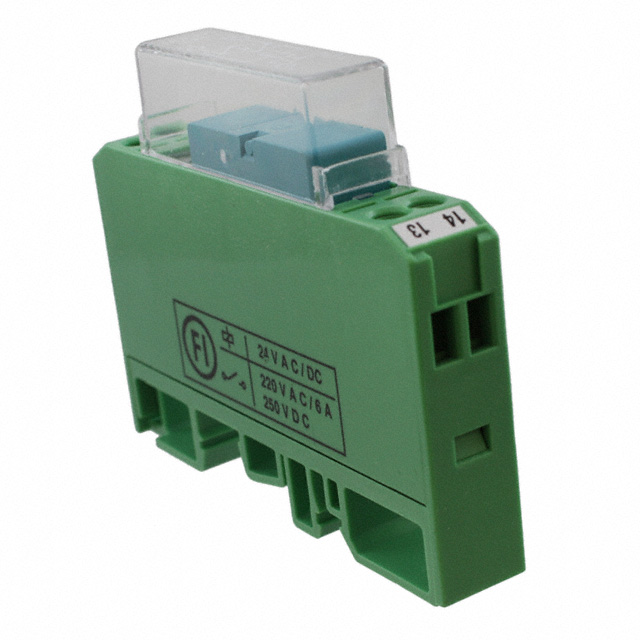

General Purpose Relay SPST-NO (1 Form A) 24VAC/DC Coil DIN Rail

Technical documentation and resources
