15600-08-20
ActiveEaton - Electronics Division
FUSE BLOCK BLADE 30A PANEL MNT
15600-08-20
ActiveEaton - Electronics Division
FUSE BLOCK BLADE 30A PANEL MNT
Description
General part information
15600-08-20

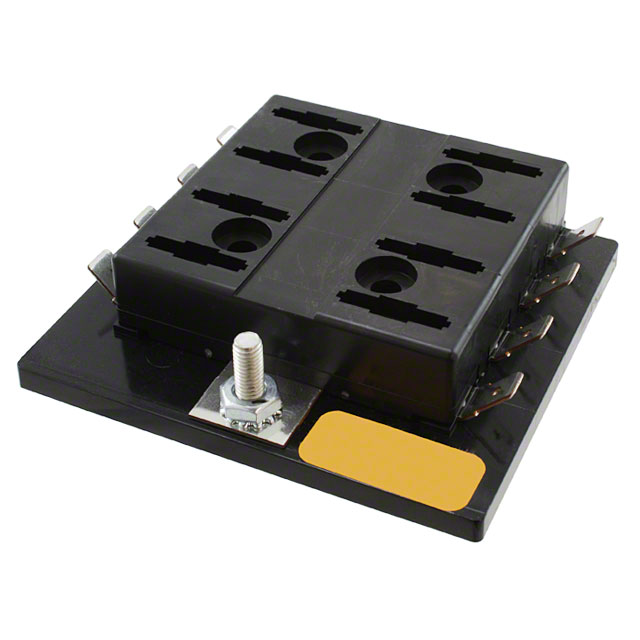

Fuse Block 30 A 8 Circuit Blade Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 15600-08-20 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating | 30 A |
| For Use With/Related Products | ATC, ATO |
| Fuse Length | 0.75 in |
| Fuse Type | Blade |
| Fuse Width | 0.2 in |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 8 |
| Quick Connect Size (0.250") | 0.25 in |
| Termination Style | Quick Connect |
