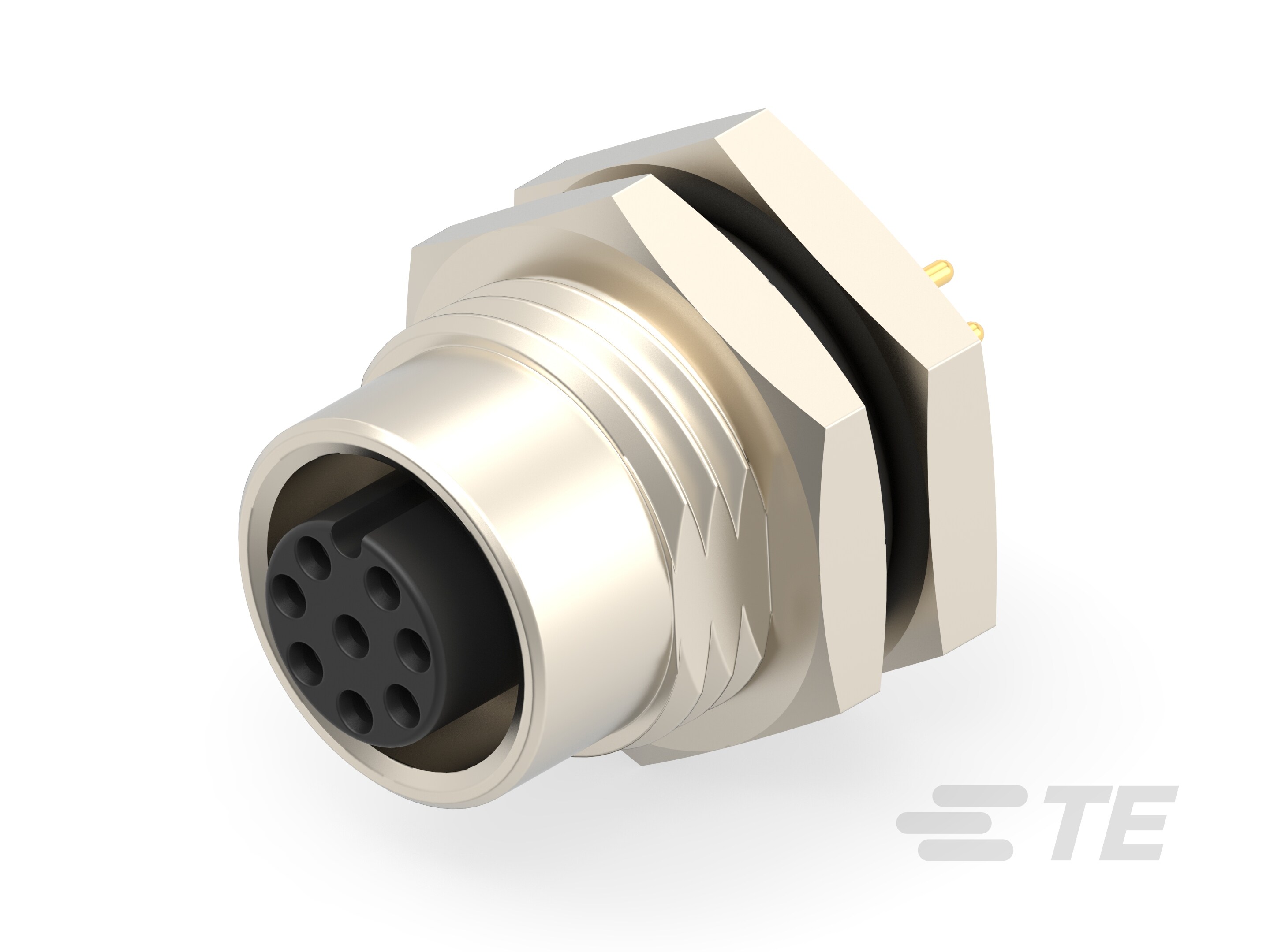

1838417-4
ActiveTE Connectivity AMP Connectors
CONN CIRCULAR SKT 8 POS SOLDER ST THRU-HOLE 8 TERMINAL 1 PORT
1838417-4
ActiveTE Connectivity AMP Connectors
CONN CIRCULAR SKT 8 POS SOLDER ST THRU-HOLE 8 TERMINAL 1 PORT
Description
General part information
1838417-4
8 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount & Board Mount, Reverse Gender, Nickel, M12 Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 1838417-4 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating | 2 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 8 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-8 |
| Termination | Solder Cup |
| Voltage Rating | 30 V |
| Voltage Rating (Type) | DC, AC |
