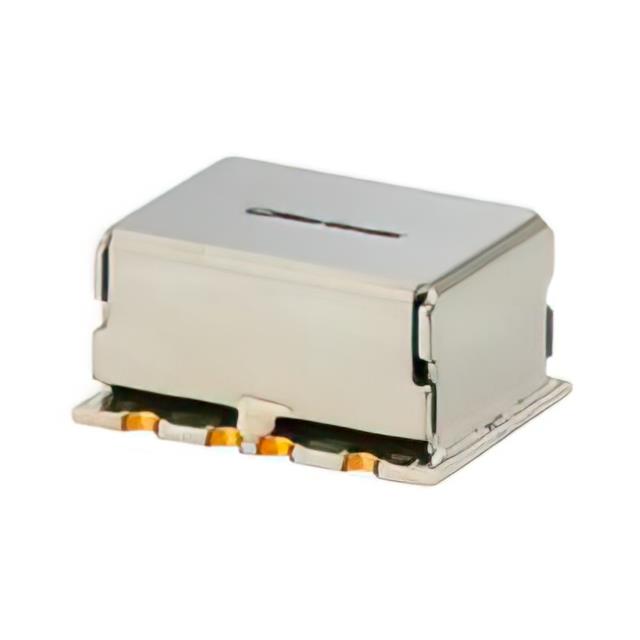

SYDC-20-62HP+
ActiveMini-Circuits
SMT BI-DIR COUP, 10 - 540 MHZ
SYDC-20-62HP+
ActiveMini-Circuits
SMT BI-DIR COUP, 10 - 540 MHZ
Description
General part information
SYDC-20-62HP+
RF Directional Coupler Military 10MHz ~ 540MHz 19.8 ± 0.5dB 25W 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SYDC-20-62HP+ |
|---|---|
| Applications | Military |
| Coupler Type | Standard |
| Coupling Factor | 19.8 dB |
| Coupling Factor Tolerance | 0.5 dB |
| Frequency (Max) | 540 MHz |
| Frequency (Min) | 10 MHz |
| Package / Case | No Lead, 8-SMD |
| Power - Max | 25 W |
| Return Loss | 26 dB |
