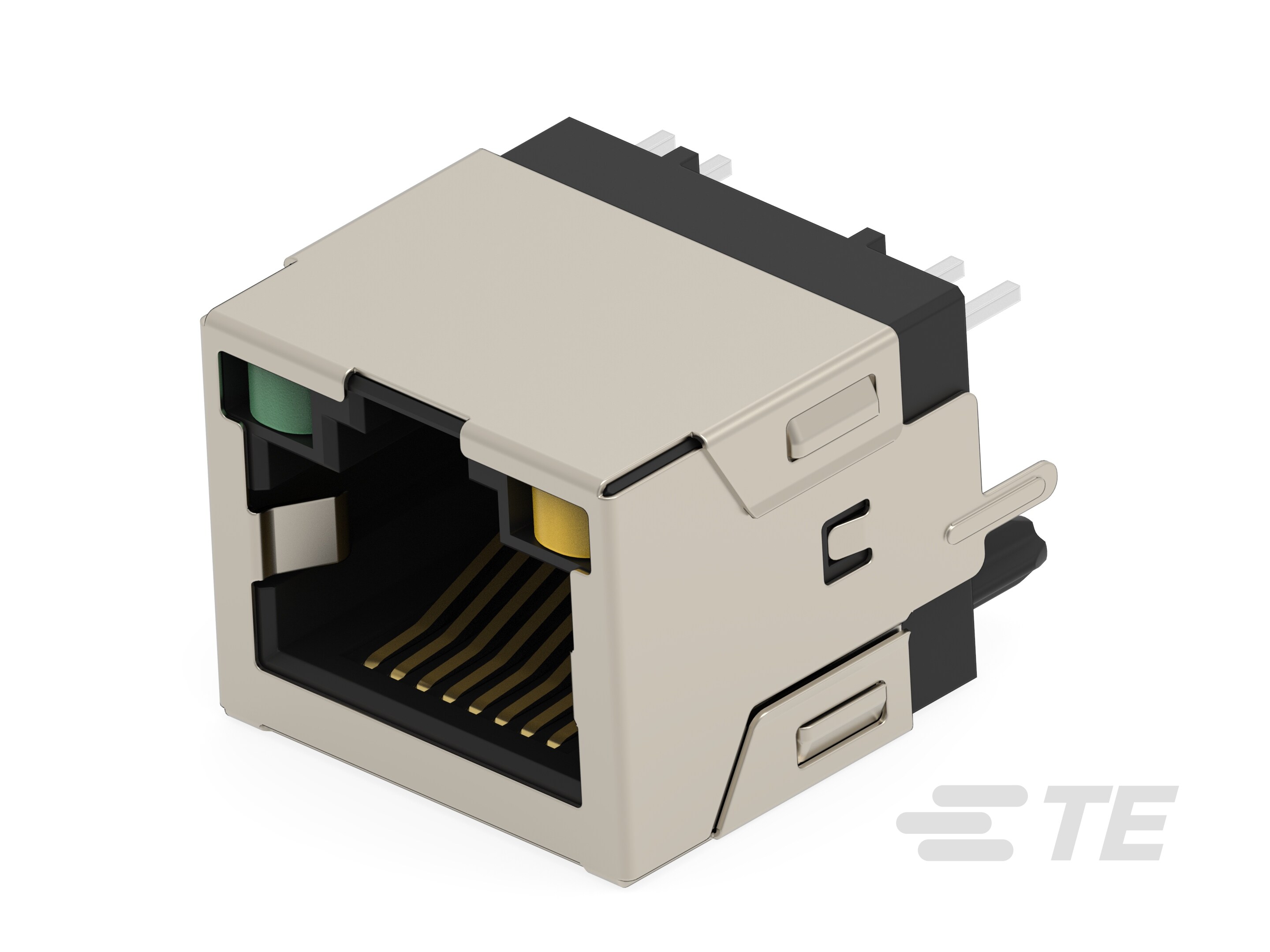

RJ45 JACK THR 1Gb VERT. LED 1X1-2501551-4

2501551-4

Active
TE Connectivity AMP Connectors

RJ45 CONN, JACK, 8P8C, 1PORT, TH ROHS COMPLIANT: YES

Find alt
RJ45 JACK THR 1Gb VERT. LED 1X1-2501551-4

2501551-4

Active
TE Connectivity AMP Connectors

RJ45 CONN, JACK, 8P8C, 1PORT, TH ROHS COMPLIANT: YES

Find alt

Description

General part information

2501551-4

RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 5e, 8 Position, Standard Profile, Through Hole - Solder, Vertical, Top Entry, PCB Ground

Technical Specifications

Parameters and characteristics for this part

Specification2501551-4
Connector TypeJack
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialPhosphor Bronze
FeaturesBoard Lock
Housing MaterialLiquid Crystal Polymer, LCP
LED ColorGreen, Yellow
Mounting TypeThrough Hole
Number of Contacts8
Number of Ports1
Number of Positions8
Number of Rows1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
RatingsCat5e
ShieldingShielded
Tab DirectionUser Selectable
TerminationSolder
