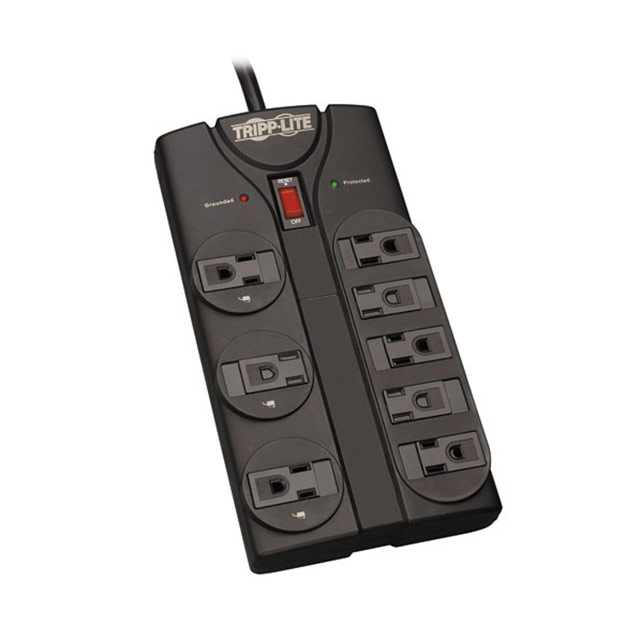

TLP808B
ActiveEaton Tripp Lite
SURGE PROTECTOR POWER STRIP 8 OU
TLP808B
ActiveEaton Tripp Lite
SURGE PROTECTOR POWER STRIP 8 OU
Description
General part information
TLP808B
SURGE PROTECTOR POWER STRIP 8 OU
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP808B |
|---|---|
| AC Outlets (Count) | 8 count |
| Approval Agency | cUL, UL |
| Connector - AC Input | NEMA 5-15P |
| Connector - AC Output | NEMA 5-15R |
| Cord Length | 8 ft |
| Current - Max | 15 A |
| Energy | 1440 J |
| Housing Material | Plastic |
| Mounting Type | Bench, Floor, Wall |
| Overload Protection | Circuit Breaker(s) |
| Type | Surge Protector, Power Strip, Outlet Strip |
| Voltage - Input | 120 VAC |
