GTS06CF20-29S

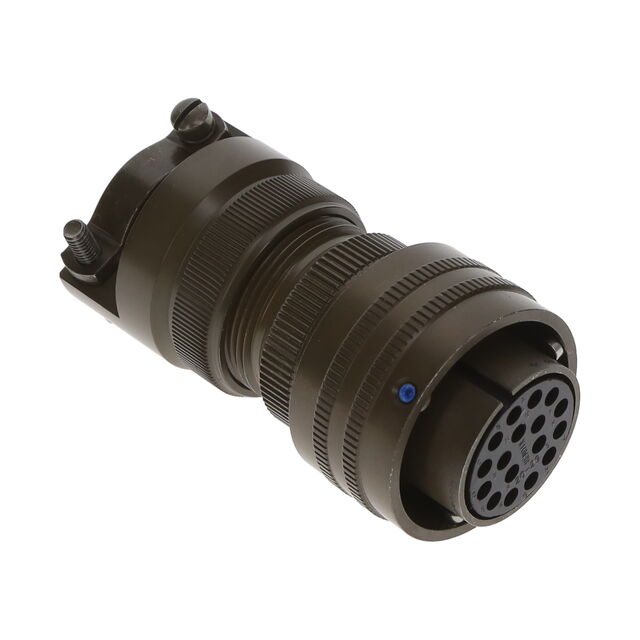

17 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | GTS06CF20-29S |
|---|---|
| Applications | Military, Aerospace, Mass Transit, Commercial |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum |
| Cable Opening | 0.748 in |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Fastening Type | Reverse Bayonet Lock |
| Features | Coupling Nut, Cable Clamp, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 17 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-5015 Derivative |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 29 |
| Shell Size - Insert (Minimum) | 20 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 500 VAC |
| Voltage Rating (DC) | 700 VDC |
