FMC1329085-24
ActiveFairview Microwave
COAX CBL 2.92MM TO SMA 24"
FMC1329085-24
ActiveFairview Microwave
COAX CBL 2.92MM TO SMA 24"
Description
General part information
FMC1329085-24

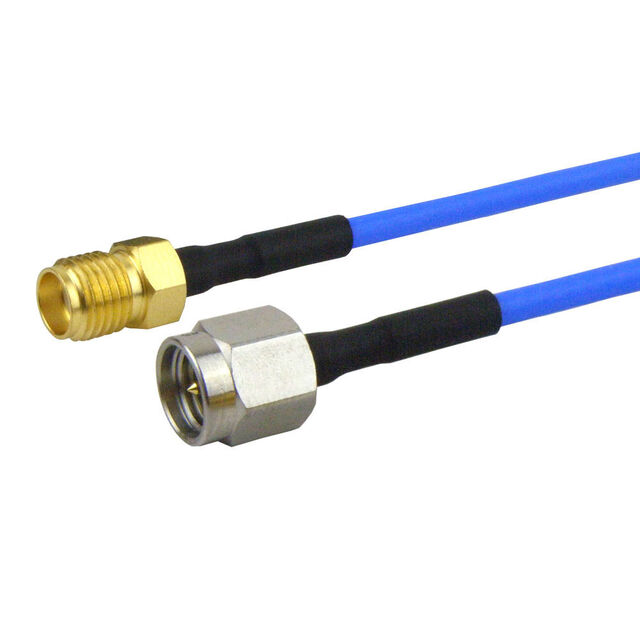

Cable Assembly Coaxial 2.92mm to SMA Hand Formable .047 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC1329085-24 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to SMA |
