Description
General part information

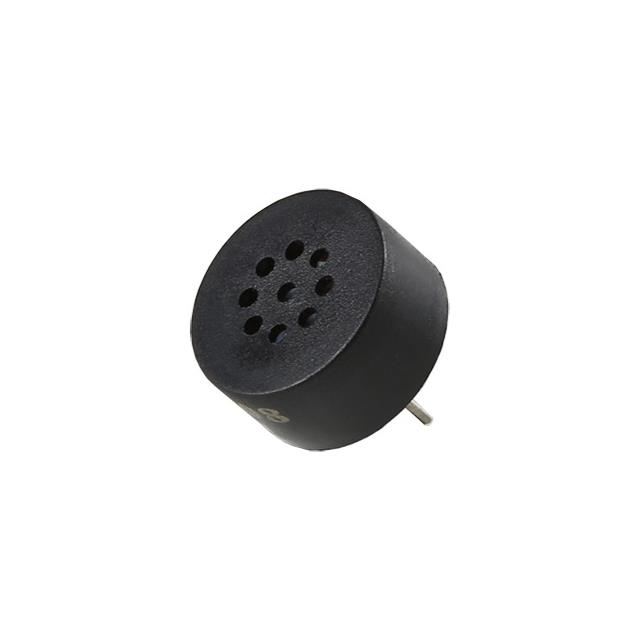

PRT-20660
8 Ohms General Purpose Speaker 1.36 kHz ~ 2.04 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-20660 |
|---|---|
| Distortion Rating | 10 % |
| Distortion Rating Power | 0.3 W |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 300 mW |
| Frequency - Self Resonant | 20 kHz |
| Frequency Range (Max) | 2.04 kHz |
| Frequency Range (Min) | 1.36 kHz |
| Height - Seated (Max) | 0.295 in |
| Impedance | 8 Ohm |
| Material - Magnet | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 0.5 W |
| Ratings | Washable |
| Shape | Round |
| Size / Dimension Diameter | 0.591 in |
| Technology | Magnetic |
| Termination | PC Pins |
| Type | General Purpose |
