2437642-1
ActiveTE Connectivity AMP Connectors

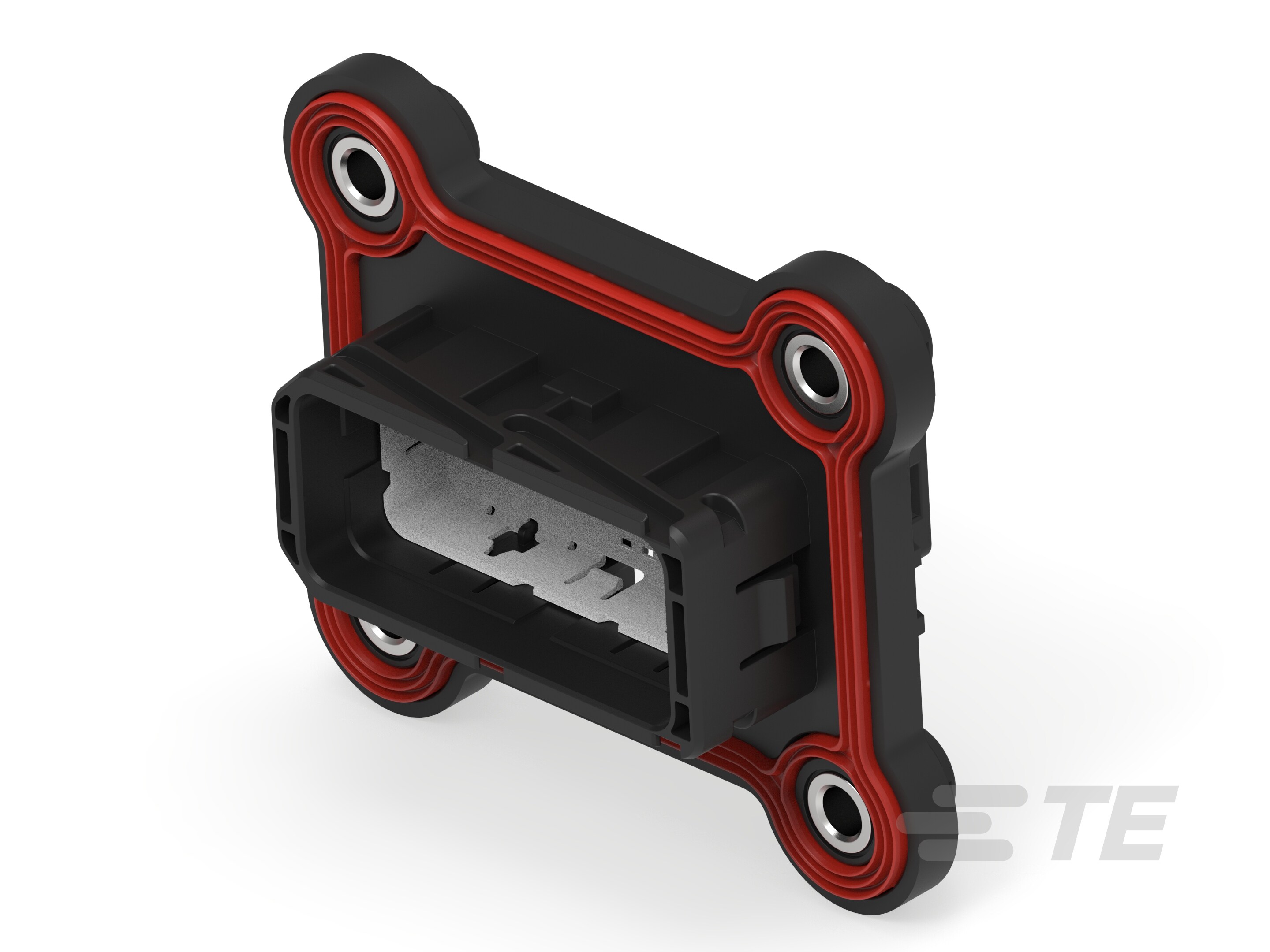

57POS, HYBRID DTB, TAB HSG ASSY
2437642-1
ActiveTE Connectivity AMP Connectors
57POS, HYBRID DTB, TAB HSG ASSY
Description
General part information
2437642-1
57 Position Housing, Housing for Male Terminals, Wire-to-Wire, Sealable, Black, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2437642-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Features | Mounting Flange |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 57 |
| Number of Rows | 5 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
