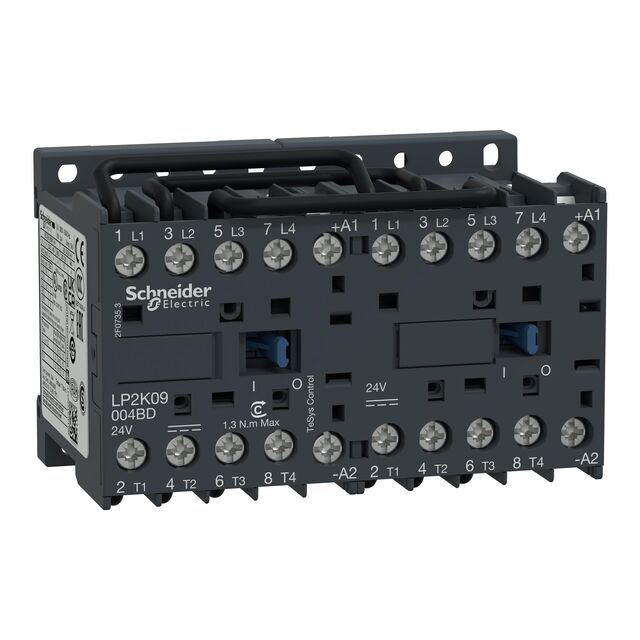

LP2K09004BD
ObsoleteSCHNEIDER ELECTRIC
REVERSING CONTACTOR
LP2K09004BD
ObsoleteSCHNEIDER ELECTRIC
REVERSING CONTACTOR
Description
General part information
LP2K09004BD
REVERSING CONTACTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | LP2K09004BD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 20 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 2.4 V |
| Operate Time | 40 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 4 |
| Release Time | 10 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
