3-2324579-2
ActiveTE Connectivity AMP Connectors

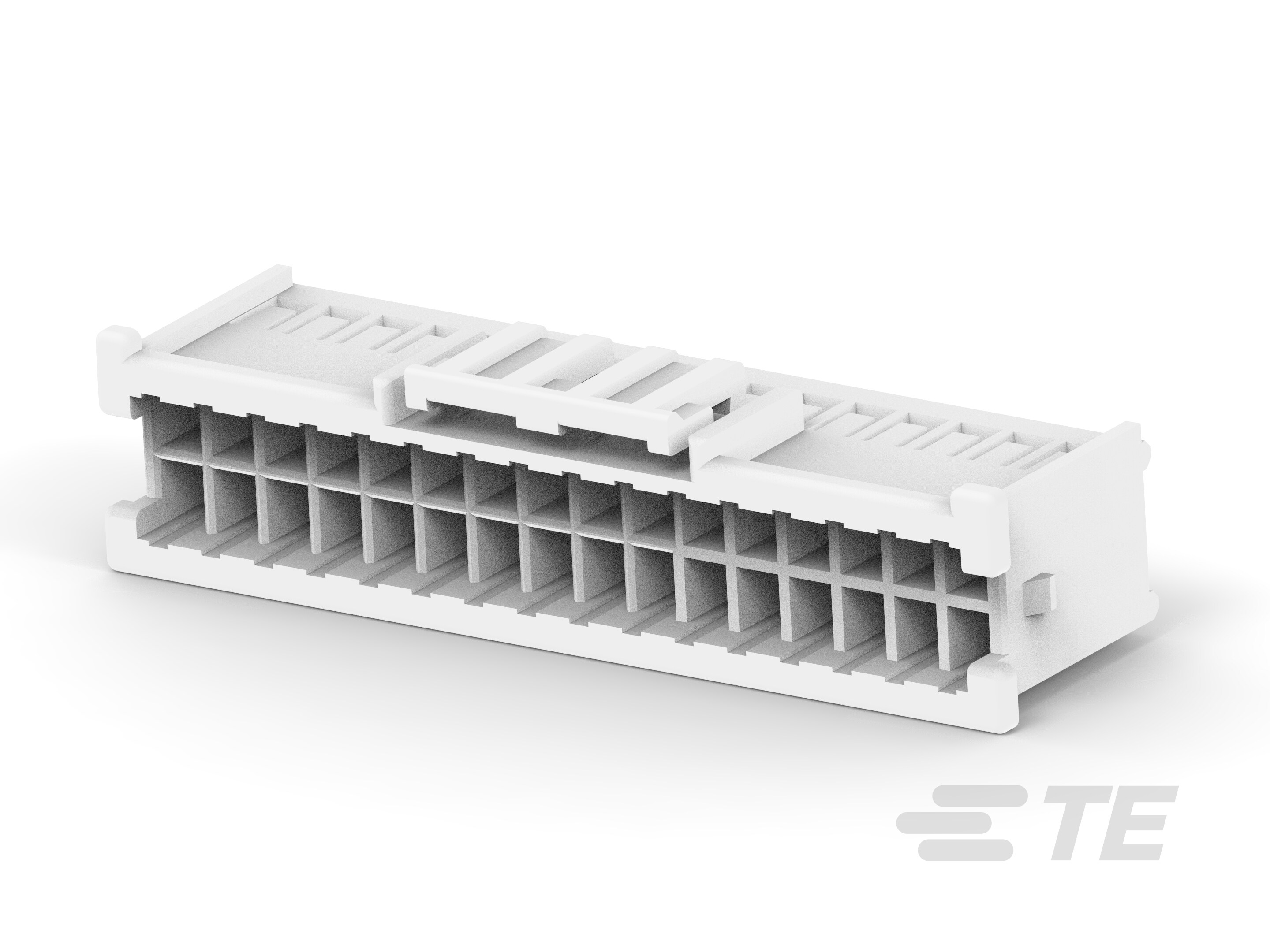

HOUSING, PLUG, 32P, DUAL ROW, EP2.5
3-2324579-2
ActiveTE Connectivity AMP Connectors
HOUSING, PLUG, 32P, DUAL ROW, EP2.5
Description
General part information
3-2324579-2
Housing, Plug, Wire-to-Wire, 32 Position, 2.5 mm [.098 in] Centerline, Crimp, 2 Row, Natural, Wire & Cable, Power & Signal, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2324579-2 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.098 in |
| Row Spacing | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
