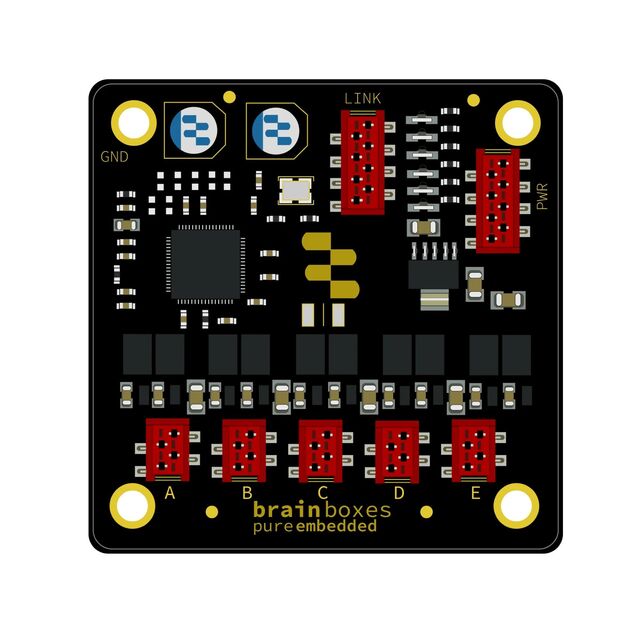

PE-505
ActiveBRAINBOXES
SWITCH, 5 PORTS, INDUSTRIAL, PCB MOUNT, RJ45 X 4, MICROMATCH COMPATIBLE 4-PIN HEADER X 1
PE-505
ActiveBRAINBOXES
SWITCH, 5 PORTS, INDUSTRIAL, PCB MOUNT, RJ45 X 4, MICROMATCH COMPATIBLE 4-PIN HEADER X 1
Description
General part information
PE-505
SWITCH, 5 PORTS, INDUSTRIAL, PCB MOUNT, RJ45 X 4, MICROMATCH COMPATIBLE 4-PIN HEADER X 1
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-505 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Ethernet Ports | 5 |
| Ethernet Speed Options | 100Mbps, 10Mbps |
| Form Factor | Compact |
| Function | Industrial Ethernet Switch |
| Mounting Type | Wall Mount |
| Number of Ports | 5 |
| Operating Temperature (Max) | 85 °C, 85 °C |
| Operating Temperature (Min) | -40 °C, -40 °C |
| Power (Watts) | 2.5 W |
| Size / Dimension Length | 2.165 in |
| Size / Dimension Width | 2.165 in |
| Type | Switch |
| USB | USB Power |
| Voltage - Input | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
