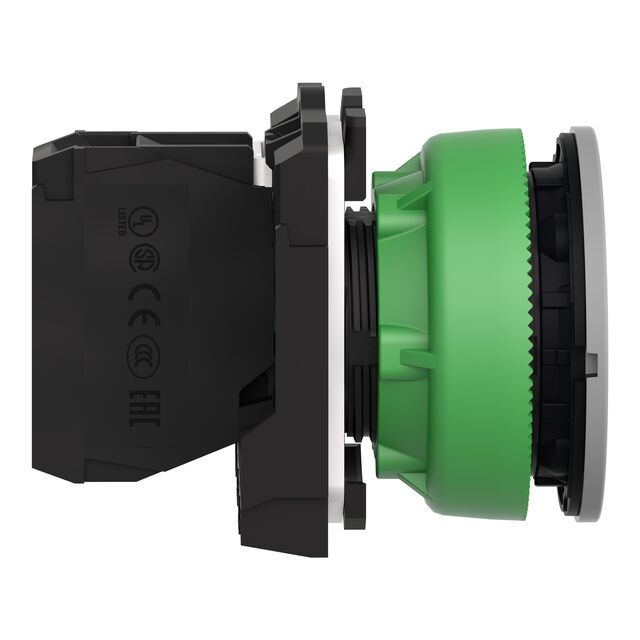

XB5FA3351C0
ActiveSCHNEIDER ELECTRIC
FLUSH BK FLUSH CAP PB WH MARK AR
XB5FA3351C0
ActiveSCHNEIDER ELECTRIC
FLUSH BK FLUSH CAP PB WH MARK AR
Description
General part information
XB5FA3351C0
Pushbutton Switch SPST-NO Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5FA3351C0 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 30.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
