NM-212-015-161-JCAA
ActiveAirBorn, a Molex company
CABLE ASSY D-NANO-D 15P 152.4MM
NM-212-015-161-JCAA
ActiveAirBorn, a Molex company
CABLE ASSY D-NANO-D 15P 152.4MM
Description
General part information
NM-212-015-161-JCAA

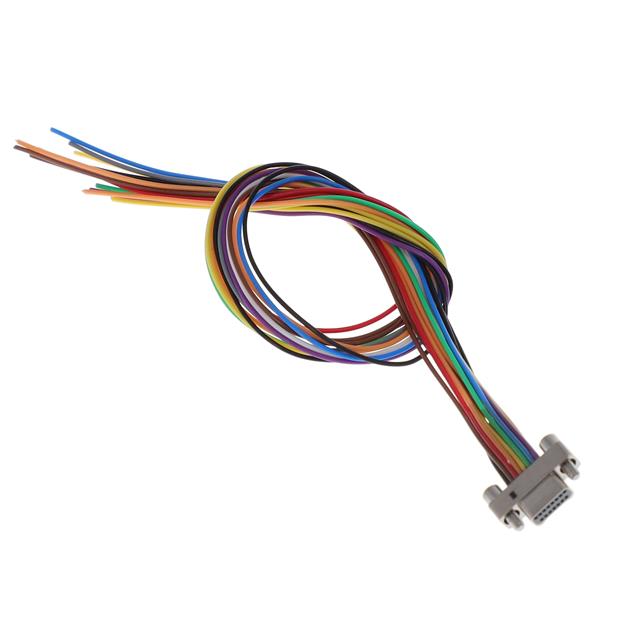

D-Sub Cable Assembly D-Type, Nano-D Multiple, Individual 0.500' (152.40mm, 6.00") Plug, Male Pins to Individual Wire Leads Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | NM-212-015-161-JCAA |
|---|---|
| 1st Connector | Male Pins, Plug |
| 2nd Connector | Individual Wire Leads |
| Color | Multiple, Individual |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Length | 0.5 ft |
| Number of Positions | 15 |
| Shielding | Unshielded |
| Type | D-Type, Nano-D |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
