284518-9
ActiveTE Connectivity AMP Connectors

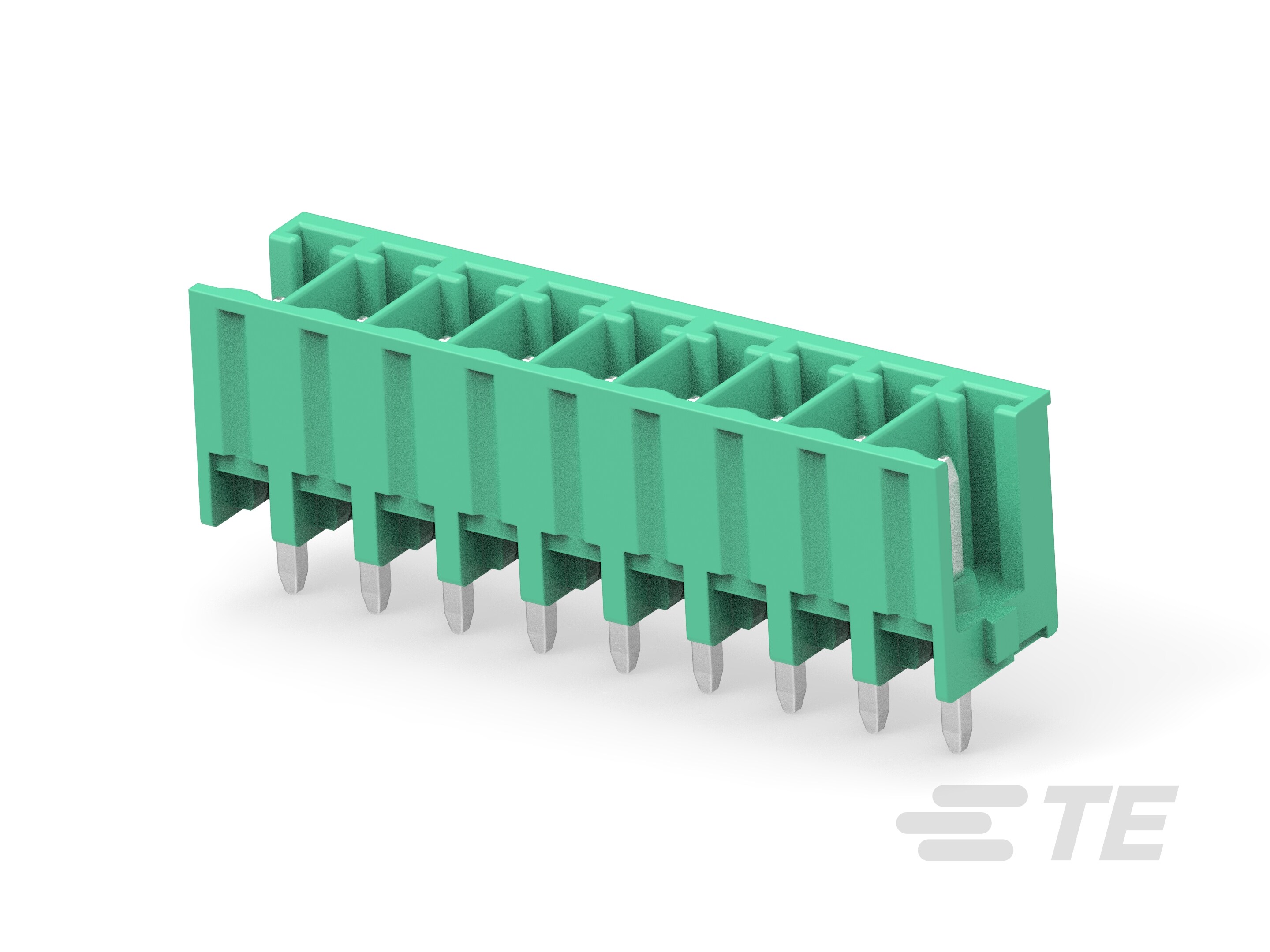

9P TERMIBLOK HDR DIR MODULE
284518-9
ActiveTE Connectivity AMP Connectors
9P TERMIBLOK HDR DIR MODULE
Description
General part information
284518-9
9 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 30 – 14 AWG, .05 – 2 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 284518-9 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 11 A |
| Features | Interlocking (Side) |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 9 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.15 in |
| Positions Per Level | 9 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - UL | 300 V |
