FE37L6A0226KA
ActiveKYOCERA AVX
CAP FILM 22UF 10% 700VDC RADIAL
FE37L6A0226KA
ActiveKYOCERA AVX
CAP FILM 22UF 10% 700VDC RADIAL
Description
General part information
FE37L6A0226KA

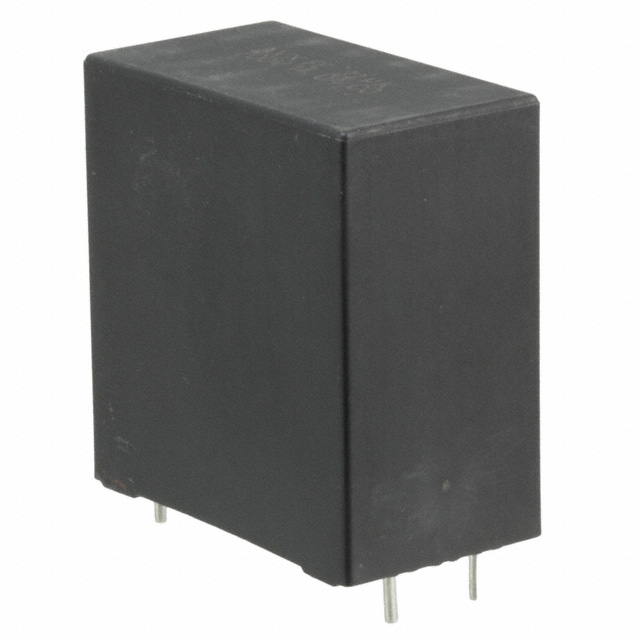

22 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | FE37L6A0226KA |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 22 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 5.5 mOhm |
| Features | Low ESR |
| Height - Seated (Max) | 1.732 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Size / Dimension Length | 1.673 in |
| Size / Dimension Width | 0.945 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 700 VDC |
