Description
General part information

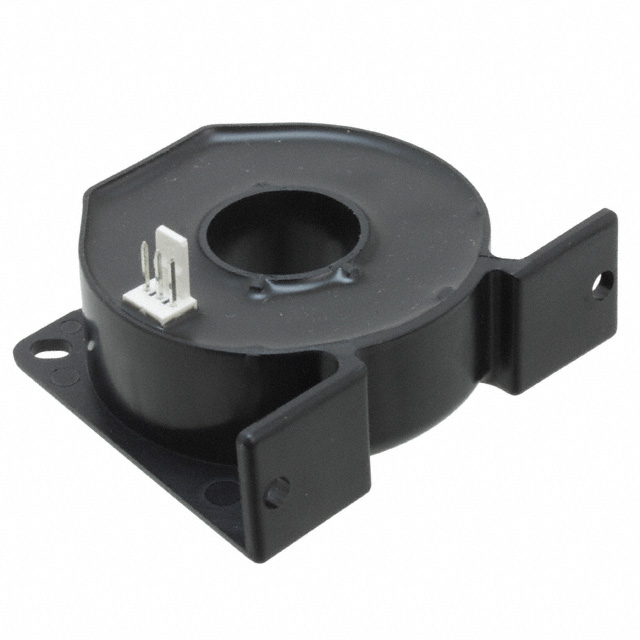

S27S300D15YM
Current Sensor 300A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | S27S300D15YM |
|---|---|
| Accuracy | 0.4 % |
| Current - Sensing | 300 A |
| Current - Supply (Max) | 20 mA |
| For Measuring | AC, DC |
| Linearity Tolerance | 0.1 % |
| Maximum Frequency | 100 kHz |
| Minimum Frequency | DC |
| Mounting Type | Panel Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Current, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensor Type | Hall Effect, Closed Loop |
| Voltage - Supply (Maximum) | 20 V |
| Voltage - Supply (Minimum) | -12 V |
