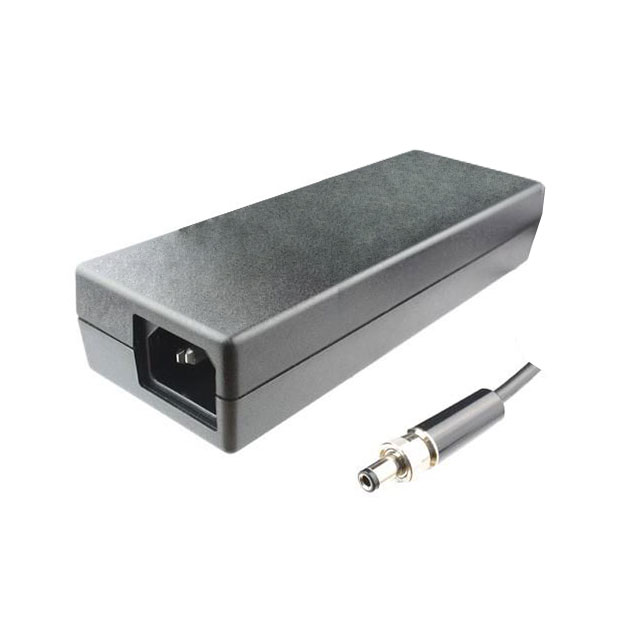

96PSA-A40W12W9-1
ObsoleteAdvantech Corporation
AC/DC DESKTOP ADAPTER 12V 40W
96PSA-A40W12W9-1
ObsoleteAdvantech Corporation
AC/DC DESKTOP ADAPTER 12V 40W
Description
General part information
96PSA-A40W12W9-1
12V 40 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 96PSA-A40W12W9-1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE |
| Cord Length | 59 in |
| Current - Output (Max) | 3.3 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| No Load Power Consumption (Max) | 100 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug Locking |
| Output Connector I.D. | 2.5 mm |
| Output Connector Length | 9 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 40 W |
| Region Utilized | International |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 4.33 in |
| Size / Dimension Width | 1.97 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V |
