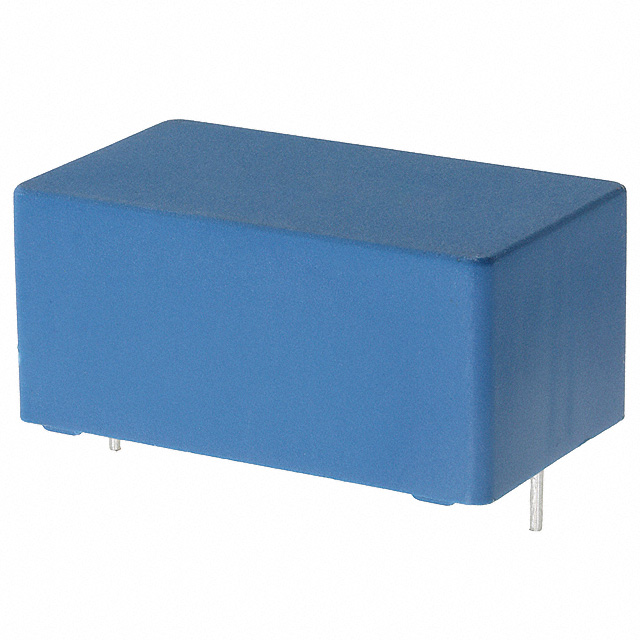

Specification	B32526T0826K000

Applications	EMI, Automotive, RFI Suppression
Capacitance	82 µF
Dielectric Material	Polyethylene Terephthalate (PET), Polyester
Height - Seated (Max)	0.748 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	1.634 in
Size / Dimension Width	0.945 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 V
