SCRH73B-470
ActiveSignal Transformer
FIXED IND 47UH 760MA 360MOHM SMD
SCRH73B-470
ActiveSignal Transformer
FIXED IND 47UH 760MA 360MOHM SMD
Description
General part information
SCRH73B-470

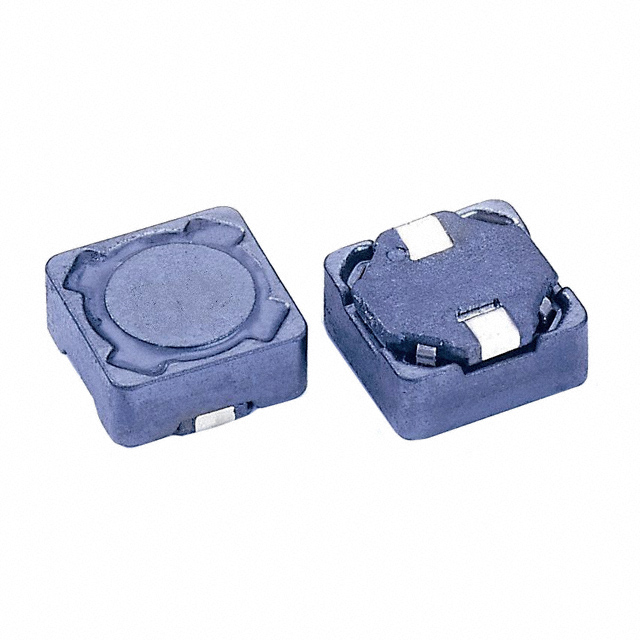

47 µH Shielded Inductor 760 mA 360mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH73B-470 |
|---|---|
| Current - Saturation (Isat) | 0.76 mA |
| Current Rating | 760 mA |
| DC Resistance (DCR) (Max) | 360 mOhm |
| Height - Seated (Max) | 0.138 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.307 in |
| Size / Dimension Width | 0.307 in |
| Tolerance | 20 % |
