1864066
ActivePhoenix Contact

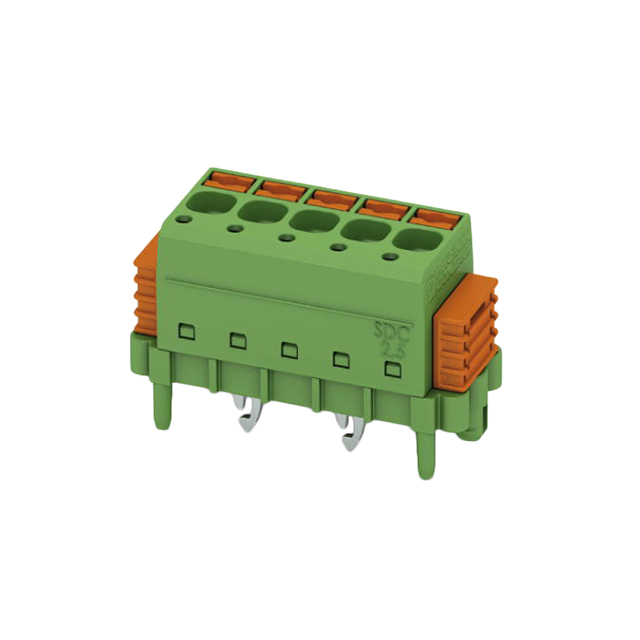

TERM BLK 5POS TOP ENTRY 5MM PCB
1864066
ActivePhoenix Contact
TERM BLK 5POS TOP ENTRY 5MM PCB
Description
General part information
1864066
5 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole, SKEDD
Technical Specifications
Parameters and characteristics for this part
| Specification | 1864066 |
|---|---|
| Color | Green |
| Contact Material - Plating | Tin Plated |
| Current | 12 A |
| Features | Board Lock |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Vertical with Board |
| Mounting Type | SKEDD, Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
