FIT50-3-B
ActiveTriad Magnetics
FIXED IND 27.16UH 4A 40.1MOHM TH
FIT50-3-B
ActiveTriad Magnetics
FIXED IND 27.16UH 4A 40.1MOHM TH
Description
General part information
FIT50-3-B

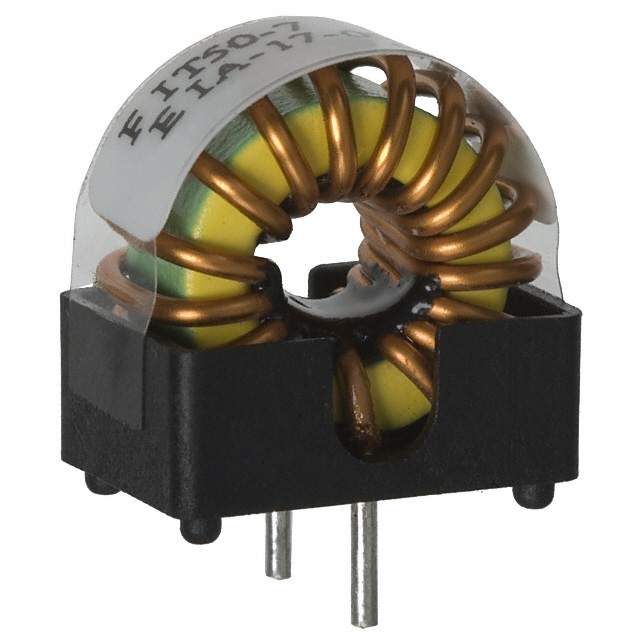

27.16 µH Unshielded Toroidal Inductor 4 A 40.1mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT50-3-B |
|---|---|
| Current Rating | 4 A |
| DC Resistance (DCR) (Max) | 40.1 mOhm |
| Height - Seated (Max) | 0.75 in |
| Inductance | 27.16 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.7 in |
| Size / Dimension Width | 0.475 in |
| Type | Toroidal |
