Specification	0391001810

Barrier Type	Enclosed
Bottom Termination	Closed
Color	White
Current Rating	20 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel
Number of Circuits	10
Number of Rows	2
Number of Wire Entries	20
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.315 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	12 AWG

039100 Series

...

Part	Bottom Termination	Terminal Block Type	Number of Circuits	Barrier Type	Number of Wire Entries	Color	Current Rating	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Rows	Voltage Rating	Pitch	Top Termination	Terminal Screw Finish	Material - Insulation	Material Flammability Rating	Mounting Type	Operating Temperature	Terminal Screw Material	Operating Temperature (Min)	Operating Temperature (Max)
Molex 0391001502	Closed	Eurostyle Terminal Strip	2	Enclosed	4	Clear	63 A	14 AWG	6 AWG	2	600 V	0.591 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-2	Chassis Panel	100 °C	Steel

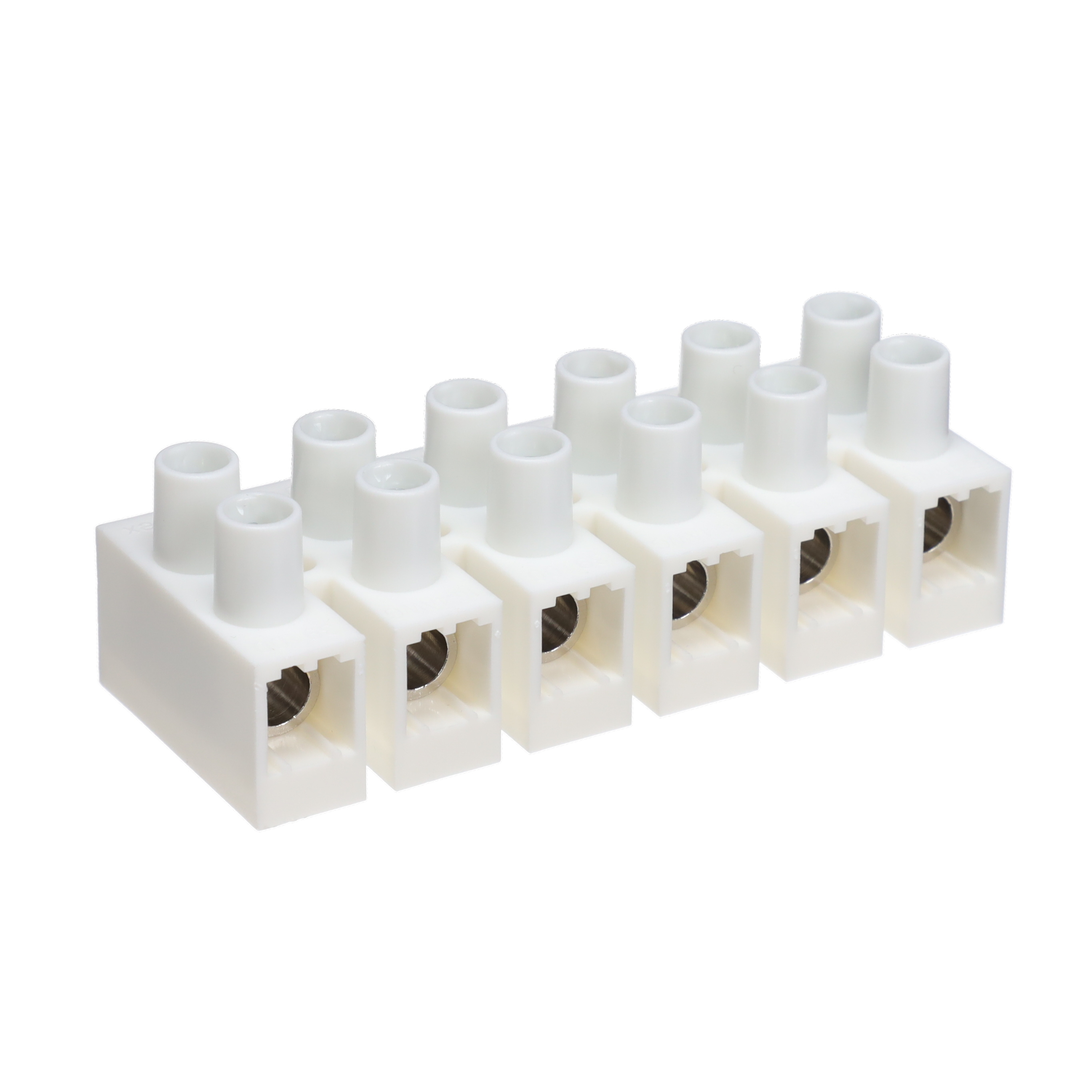

Molex 0391003006	Closed	Eurostyle Terminal Strip	6	Enclosed	12	White	85 A	16 AWG	4 AWG	2	600 V	0.65 in	Screws
Molex 0391001212	Closed	Eurostyle Terminal Strip	12	Enclosed	24	Clear	40 A	20.5 AWG	8 AWG	2	600 V	0.472 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-2	Chassis Panel	100 °C	Steel
Molex 0391000912	Closed	Eurostyle Terminal Strip	12	Enclosed	24	Clear	20 A	22 AWG	12 AWG	2	300 VAC/DC	0.315 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-2	Chassis Panel	100 °C	Steel
Molex 0391001505	Closed	Eurostyle Terminal Strip	5	Enclosed	10	Clear	63 A	14 AWG	6 AWG	2	600 V	0.591 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-2	Chassis Panel	100 °C	Steel
Molex 0391000903	Closed	Eurostyle Terminal Strip	3	Enclosed	6	Clear	20 A	22 AWG	12 AWG	2	300 VAC/DC	0.315 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-2	Chassis Panel	100 °C	Steel
Molex 0391002212	Closed	Eurostyle Terminal Strip	12	Enclosed	24	White	40 A	20.5 AWG	8 AWG	2	600 V	0.472 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-0	Chassis Panel		Steel	-40 °C	105 °C
Molex 0391002302	Closed	Eurostyle Terminal Strip	2	Enclosed	4	White	40 A	20.5 AWG	8 AWG	2	300 VAC/DC	0.472 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-0	Chassis Panel		Steel	-40 °C	105 °C
Molex 0391002005	Closed	Eurostyle Terminal Strip	5	Enclosed	10	White	30 A	18 AWG	10 AWG	2	600 V	0.394 in	Screws	Zinc	Nylon 6 PA6 Polyamide	UL94 V-0	Chassis Panel		Steel	-40 °C	105 °C
Molex 0391000911	Closed	Eurostyle Terminal Strip	11	Enclosed	22	Clear	20 A	22 AWG	12 AWG	2	300 VAC/DC	0.315 in	Screws	Zinc	Nylon 6/6 PA66 Polyamide	UL94 V-2	Chassis Panel	100 °C	Steel
